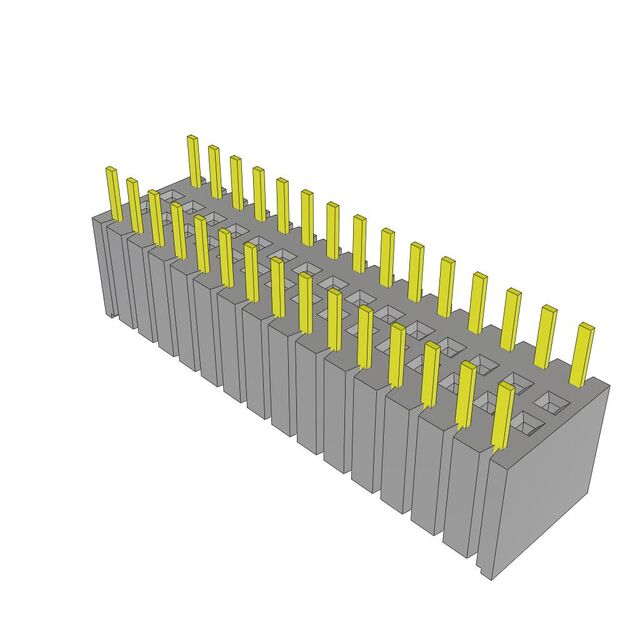

BSW-115-04-G-D

Active

Samtec Inc.

CONN RCPT 30POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSW-115-04-G-D

Active

Samtec Inc.

CONN RCPT 30POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-115-04-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

BSW-115 Series

Part	Contact Finish - Post	Insulation Material	Fastening Type	Connector Type	Material Flammability Rating	Insulation Color	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. BSW-115-24-G-S	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Breakaway Receptacle	UL94 V-0	Black	Square	Gold	All	0.51 µm	20 µin	Solder	0.35 in	8.89 mm	Phosphor Bronze	15	Female Socket	-55 °C	125 °C	0.1 in	2.54 mm	Bottom Mount Through Hole	4.32 mm	0.17 in	1
Samtec Inc. BSW-115-04-G-S	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Breakaway Receptacle	UL94 V-0	Black	Square	Gold	All	0.51 µm	20 µin	Solder	0.35 in	8.89 mm	Phosphor Bronze	15	Female Socket	-55 °C	125 °C	0.1 in	2.54 mm	Bottom Mount Through Hole	4.32 mm	0.17 in	1
Samtec Inc. BSW-115-24-L-D	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Breakaway Receptacle	UL94 V-0	Black	Square	Gold	All	0.25 çm	10 çin	Solder	0.35 in	8.89 mm	Phosphor Bronze	30	Female Socket	-55 °C	125 °C	0.1 in	2.54 mm	Bottom Mount Through Hole			2	0.165 in	4.19 mm	2.54 mm	0.1 in
Samtec Inc. BSW-115-24-L-S	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Breakaway Receptacle	UL94 V-0	Black	Square	Gold	All	0.25 çm	10 çin	Solder	0.35 in	8.89 mm	Phosphor Bronze	15	Female Socket	-55 °C	125 °C	0.1 in	2.54 mm	Bottom Mount Through Hole	4.32 mm	0.17 in	1
Samtec Inc. BSW-115-04-S-S	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Breakaway Receptacle	UL94 V-0	Black	Square	Gold	All	0.76 Ám	30 Áin	Solder	0.35 in	8.89 mm	Phosphor Bronze	15	Female Socket	-55 °C	125 °C	0.1 in	2.54 mm	Bottom Mount Through Hole	4.32 mm	0.17 in	1
Samtec Inc. BSW-115-04-T-D-S	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Receptacle	UL94 V-0	Black	Square		All			Solder	0.35 in	8.89 mm	Phosphor Bronze	30	Female Socket	-55 °C	105 ░C	0.1 in	2.54 mm	Bottom Mount Through Hole			2	0.15 in	3.81 mm	2.54 mm	0.1 in
Samtec Inc. BSW-115-04-T-S	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Breakaway Receptacle	UL94 V-0	Black	Square		All			Solder	0.35 in	8.89 mm	Phosphor Bronze	15	Female Socket	-55 °C	105 ░C	0.1 in	2.54 mm	Bottom Mount Through Hole	4.32 mm	0.17 in	1
Samtec Inc. BSW-115-04-G-D	Tin	Polyethylene Terephthalate (PET) Glass Filled	Push-Pull	Receptacle	UL94 V-0	Black	Square	Gold	All	0.51 µm	20 µin	Solder	0.35 in	8.89 mm	Phosphor Bronze	30	Female Socket	-55 °C	125 °C	0.1 in	2.54 mm	Bottom Mount Through Hole			2	0.165 in	4.19 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.11

Description

General part information

BSW-115 Series

30 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Bottom Mount Gold
