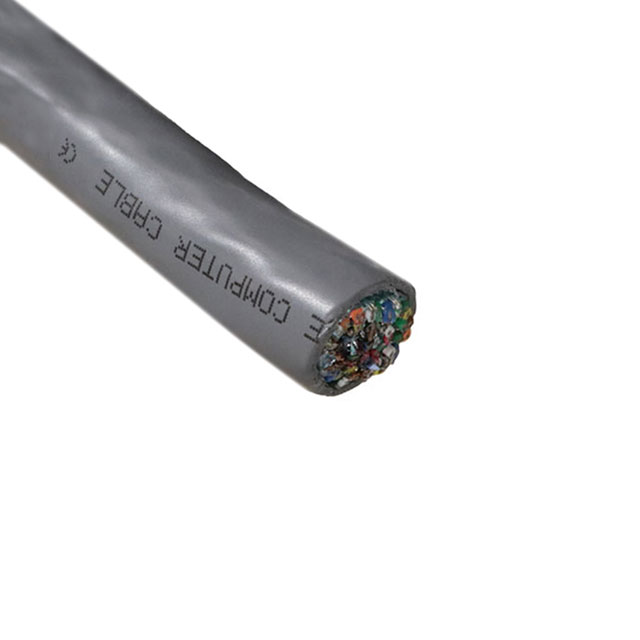

M13127 SL002

Active

ALPHA WIRE

MULTI-PAIR 54COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 54COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	M13127 SL002

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.685 in
Jacket (Insulation) Diameter [diameter]	17.4 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.27 mm
Jacket (Insulation) Thickness	0.05 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	54
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Shield Type	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Shield Material	Shield Coverage	Features	Ratings
ALPHA WIRE M13127 SL002	300 V	0.685 in	17.4 mm	22 AWG	28	7	500 '	152.4 m	Foil	54	-20 C	80 C	Slate	Copper Tinned	1.27 mm	0.05 in	Multi-Pair	Poly-Vinyl Chloride (PVC)	Polypropylene (PP)	Aluminum	100 %	Drain Wire	UL Style 2919

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 11.07

General part information

54 (27 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
