0194370040

Active

Molex

CONN HEADER R/A 6POS 7.62MM

Search across all available documentation for this part.

Active

Molex

CONN HEADER R/A 6POS 7.62MM

Technical Specifications

Parameters and characteristics for this part

Specification	0194370040

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Fastening Type	Latch Lock
Features	Board Guide, Mounting Flange
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Insulation Height [z]	1.318 in
Insulation Height [z]	33.48 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.3 in
Pitch - Mating	7.62 mm
Row Spacing - Mating [x]	7.62 mm
Row Spacing - Mating [x]	0.3 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Features	Shrouding	Termination	Connector Type	Number of Positions	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Applications	Number of Rows	Style	Contact Material	Insulation Height [z]	Insulation Height [z]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Type	Fastening Type	Ingress Protection
Molex 0194370040	Board Guide Mounting Flange	Shrouded - 4 Wall	Solder	Header	6	Black	0.3 in	7.62 mm	Rectangular	UL94 V-0	Tin	2.54 µm	100 µin	Panel Mount Right Angle Through Hole	Automotive General Purpose Industrial	2	Board to Cable/Wire	Copper Alloy	1.318 in	33.48 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	2.54 çm	100 çin	7.62 mm	0.3 in	All	Male Blade	Latch Lock	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

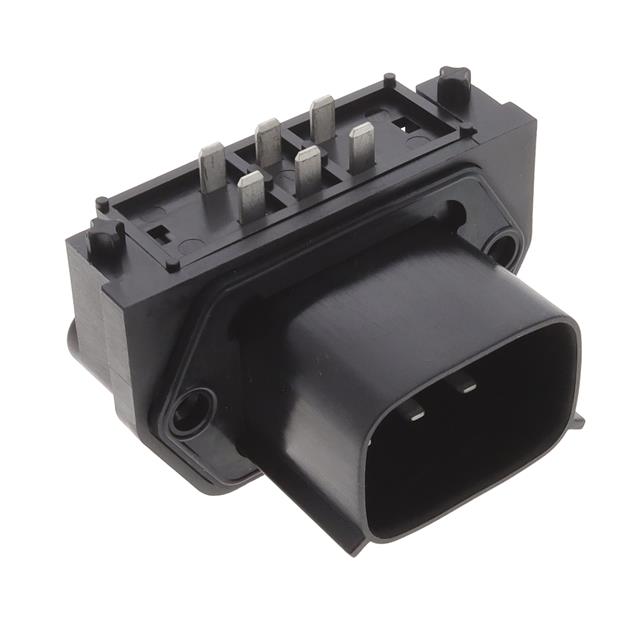

Connector Header Panel Mount, Through Hole, Right Angle 6 position 0.300" (7.62mm)
