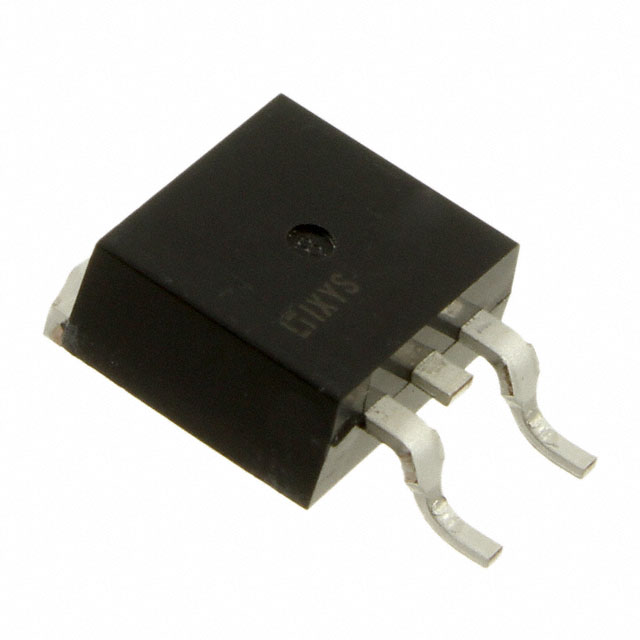

DSI30-16AS-TRL

Active

IXYS

DIODE GEN PURP 1.6KV 30A TO263AA

Search across all available documentation for this part.

Active

IXYS

DIODE GEN PURP 1.6KV 30A TO263AA

Technical Specifications

Parameters and characteristics for this part

Specification	DSI30-16AS-TRL

Capacitance @ Vr, F	10 pF
Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	40 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TO-263AA
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.29 V

Part	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Package / Case	Mounting Type	Current - Average Rectified (Io)	Technology	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F
IXYS DSI30-12AC	Standard Recovery >500ns	200 mA	1.45 V	150 °C	-55 °C	ISOPLUS220™	ISOPLUS220™	Through Hole	30 A	Standard	50 µA	1.2 kV
IXYS DSI30-08AS-TRL	Standard Recovery >500ns	200 mA	1.29 V	175 ░C	-40 °C	TO-263AA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	30 A	Standard	40 µA	800 V	10 pF
IXYS DSI30-16AS-TRL	Standard Recovery >500ns	200 mA	1.29 V	175 ░C	-40 °C	TO-263AA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	30 A	Standard	40 µA		10 pF
IXYS DSI30-16AS-TUB	Standard Recovery >500ns	200 mA	1.29 V	175 ░C	-40 °C	TO-263AA	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	30 A	Standard	40 µA		10 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1600 V 30A Surface Mount TO-263AA
