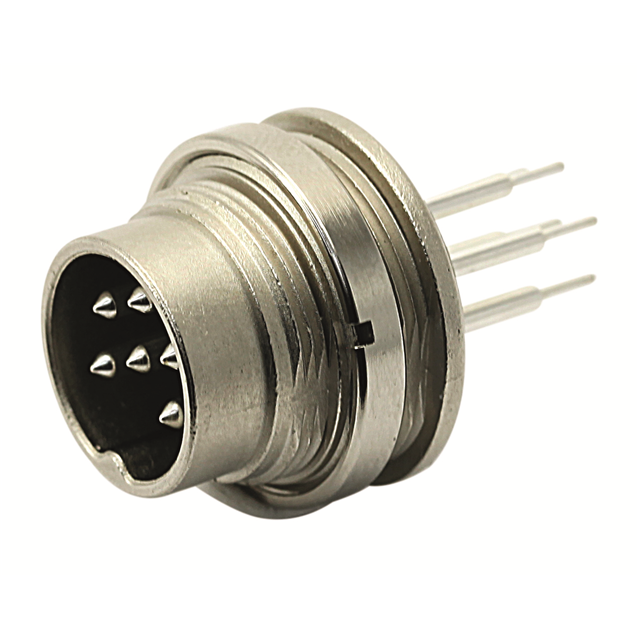

T 3302 420

Active

Amphenol Sine Systems Corp

REAR MOUNTING MALE RECEPTACLE WI

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

REAR MOUNTING MALE RECEPTACLE WI

Technical Specifications

Parameters and characteristics for this part

Specification	T 3302 420

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	10 A
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-4
Shielding	Shielded
Termination	Solder
Voltage Rating	250 VDC

Part	Insert Material	Orientation	Applications	Number of Positions	Mounting Feature	Primary Material	Shell Size - Insert	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type	Color	Shell Finish	Current Rating (Amps)	Material Flammability Rating	Shielding	Termination	Ingress Protection	Voltage Rating	Shell Material
Amphenol Sine Systems Corp T 3302 420	Thermoplastic	Keyed	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	4	Bulkhead - Front Side Nut	Metal	M16-4	Male Pins Receptacle	100 °C	-40 °C	Silver	Panel Mount Through Hole	Silver	Nickel	10 A	UL94 V-0	Shielded	Solder	IP40	250 VDC	Zinc Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
