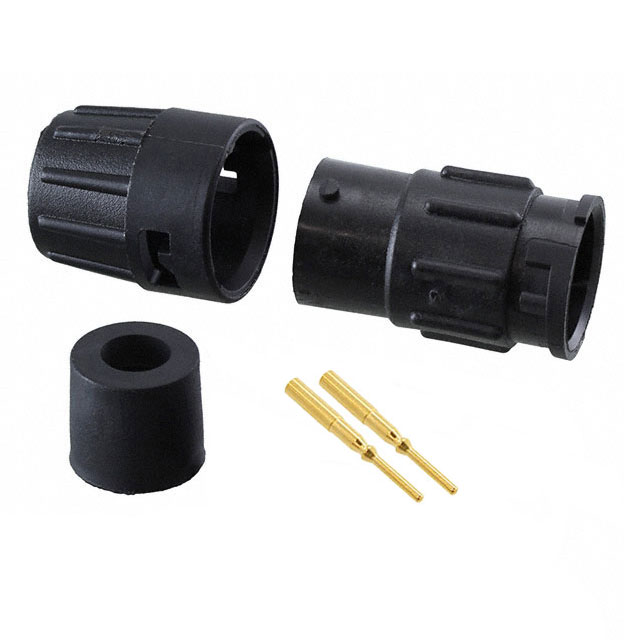

8280-2PG-321
ActiveConxall/Switchcraft
CONN RCPT MALE 2POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8280-2PG-321
ActiveConxall/Switchcraft
CONN RCPT MALE 2POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8280-2PG-321 |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [diameter] | 5.84 mm |
| Cable Opening [Max] [diameter] | 0.23 in |
| Cable Opening [Min] [diameter] | 5.33 mm |
| Cable Opening [Min] [diameter] | 0.21 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.85 | |
| 10 | $ 7.10 | |||
| 25 | $ 6.71 | |||
| 50 | $ 6.54 | |||
| 100 | $ 6.22 | |||
| 300 | $ 5.56 | |||
| 500 | $ 5.24 | |||
| 1000 | $ 4.58 | |||
Description
General part information
8280-2PG Series
2 Position Circular Connector Receptacle, Male Pins Crimp
