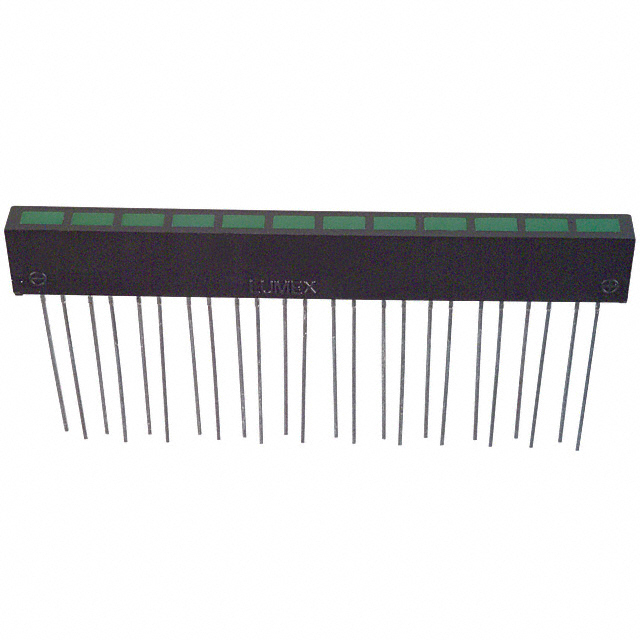

SSA-LXH1225GD
ActiveLumex Opto/Components Inc.
LED CBI 5X2.5MM 12-SEG GRN VERT
Deep-Dive with AI
Search across all available documentation for this part.
SSA-LXH1225GD
ActiveLumex Opto/Components Inc.
LED CBI 5X2.5MM 12-SEG GRN VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSA-LXH1225GD |
|---|---|
| Color | Green (x 12) |
| Configuration | SIP, Bar |
| Configuration | 12 Wide |
| Current | 25 mA |
| Lens Size [x] | 5 mm |
| Lens Size [y] | 2.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole |
| Viewing Angle | 110 ° |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.62 | |
| 10 | $ 3.97 | |||
| 200 | $ 3.25 | |||
| 600 | $ 2.74 | |||
| 1000 | $ 2.51 | |||
| 2000 | $ 2.41 | |||
Description
General part information
SSA-LXH1225 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 12 Wide, SIP Green (x 12) Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole
Documents
Technical documentation and resources
No documents available
