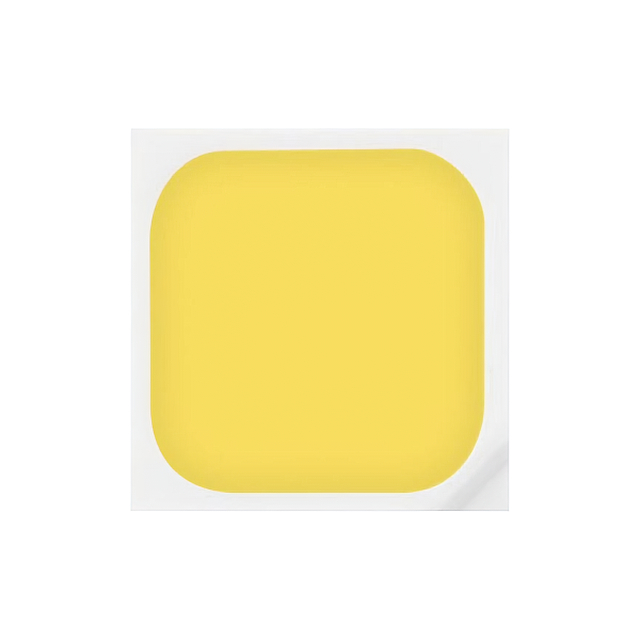

SPMWH3327FS7GAU3SF
ActiveSamsung Semiconductor, Inc.
LED LM302D WARM WHT 3500K 3030
Deep-Dive with AI
Search across all available documentation for this part.
SPMWH3327FS7GAU3SF
ActiveSamsung Semiconductor, Inc.
LED LM302D WARM WHT 3500K 3030
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPMWH3327FS7GAU3SF |
|---|---|
| CCT (K) | 3500 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 200 mA |
| Current - Test | 150 mA |
| Height - Seated (Max) [Max] [z] | 0.03 in |
| Height - Seated (Max) [Max] [z] | 0.75 mm |
| Lumens/Watt @ Current - Test | 139 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 3030 |
| Thermal Resistance of Package [custom] | 12 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 6.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.22 | |||
| 100 | $ 0.14 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2000 | $ 0.09 | |||
| Tape & Reel (TR) | 4000 | $ 0.08 | ||
| 8000 | $ 0.07 | |||
| 12000 | $ 0.07 | |||
| 20000 | $ 0.07 | |||
| 28000 | $ 0.07 | |||
| 40000 | $ 0.06 | |||
| 100000 | $ 0.06 | |||
Description
General part information
SPMWH3327 Series
LED Lighting LM302D White, Warm 3500K 3-Step MacAdam Ellipse 6.2V 150mA 120° 1212 (3030 Metric)
Documents
Technical documentation and resources
No documents available
