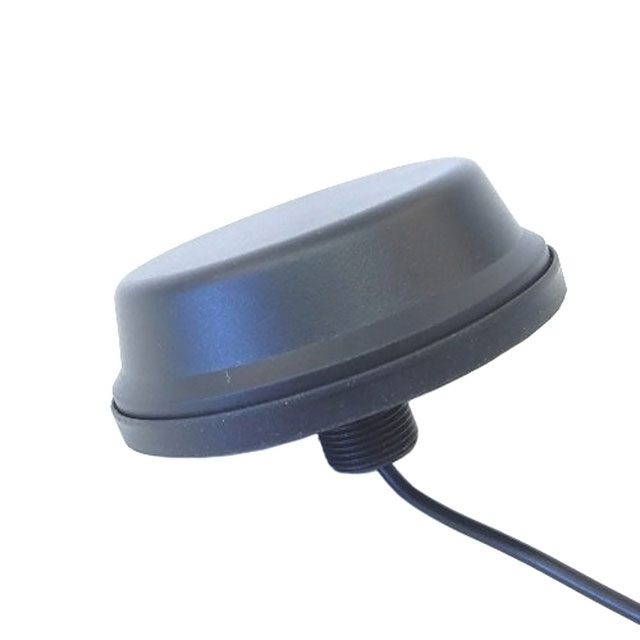

TANGO23/2.5M/SMAM/S/RP/19
ActiveSiretta Ltd
RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA
Deep-Dive with AI
Search across all available documentation for this part.
TANGO23/2.5M/SMAM/S/RP/19
ActiveSiretta Ltd
RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TANGO23/2.5M/SMAM/S/RP/19 |
|---|---|
| Applications | Bluetooth, WLAN, Zigbee™ |
| Frequency (Center/Band) | 5.5 GHz, 2.4 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 5.9 GHz, 2.5 GHz |
| Frequency Range [Min] | 5.1 GHz, 2.4 GHz |
| Gain | 5 dBi |
| Height (Max) [Max] [z] | 0.906 in |
| Height (Max) [Max] [z] | 23 mm |
| Number of Bands | 2 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | RP-SMA Male |
| VSWR | 1.7 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.81 | |
| 10 | $ 30.26 | |||
| 25 | $ 28.90 | |||
| 100 | $ 25.84 | |||
| 250 | $ 24.65 | |||
Description
General part information
TANGO23 Series
RF ANTENNA Bluetooth, WLAN, Zigbee™ Puck RP-SMA Male Panel Mount
