FA1-NCSP-C01-1
ActiveAmphenol RF

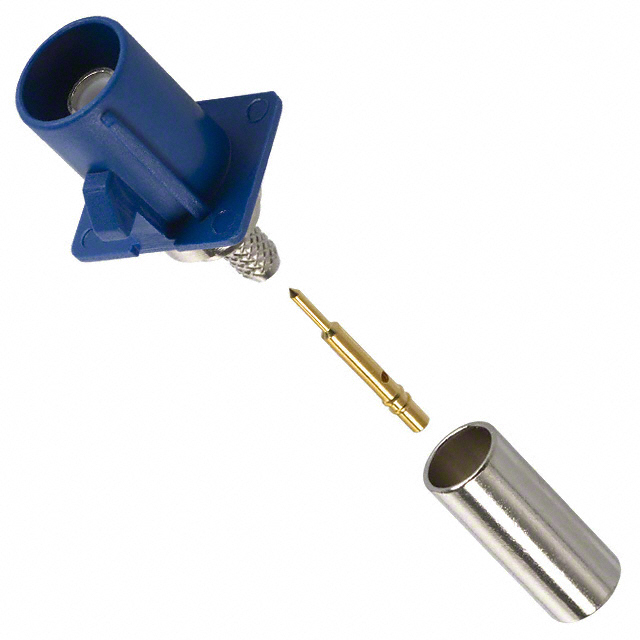

CONN FAKRA PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
FA1-NCSP-C01-1
ActiveAmphenol RF
CONN FAKRA PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FA1-NCSP-C01-1 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 188, 188A, 316, LMR-100, M17/119-RG174, RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code C |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Blue, Signal |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.3 dB |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
FA1-NCSP Series
| Part | Number of Ports | Housing Color | Fastening Type | Shield Termination | Cable Group | Insertion Loss | Connector Style | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Impedance | Mounting Feature | Center Contact Plating | Features | Frequency - Max [Max] | Connector Type | Body Finish | Center Contact Material | Body Material | Includes | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 1 | Blue Signal | Locking Ramp | Crimp | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 0.3 dB | Fakra SMB | Crimp | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | Flange | Gold | Code C | 4 GHz | Male Pin Plug | Nickel | Brass | Brass | 1 Connector 1 Contact 1 Ferrule | |
Amphenol RF | 1 | Blue Signal | Locking Ramp | Crimp | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 0.3 dB | Fakra SMB | Crimp | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | Flange | Gold | Code C | 4 GHz | Male Pin Plug | Nickel | Brass | Brass | 1 Connector 1 Contact 1 Ferrule | |
Amphenol RF | 1 | Blue Signal | Locking Ramp | Solder | 0.3 dB | Fakra SMB | Solder | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Code C | 4 GHz | Male Pin Plug | Gold | Brass | Brass | Board Edge Cutout Surface Mount | |||
Amphenol RF | 1 | Blue Signal | Locking Ramp | Crimp | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 0.3 dB | Fakra SMB | Crimp | 100 °C | -40 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | Flange | Gold | Code C | 4 GHz | Male Pin Plug | Nickel | Brass | Brass | 1 Connector 1 Contact 1 Ferrule |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.73 | |
| 10 | $ 2.48 | |||
| 25 | $ 2.35 | |||
| 50 | $ 2.29 | |||
Description
General part information
FA1-NCSP Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Panel Mount Crimp
