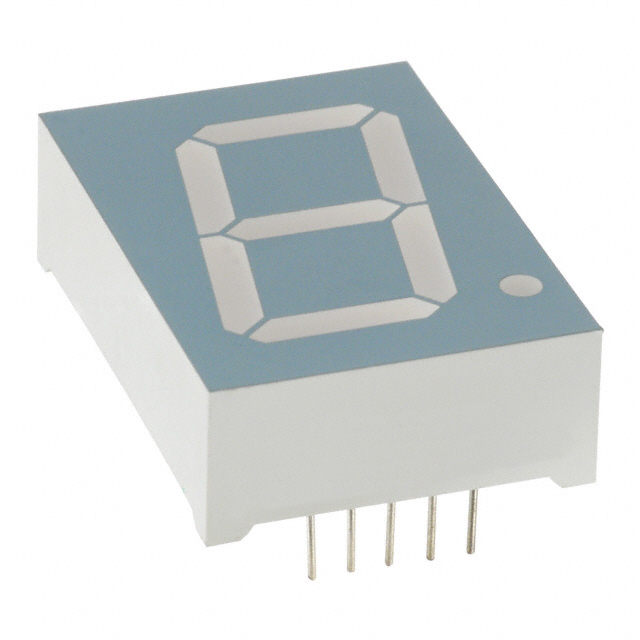

LDS-AA14RI

Active

Lumex Opto/Components Inc.

DISPLAY 7-SEG 1" SGL RED 10DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDS-AA14RI

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	1 in
Digit/Alpha Size	25.4 mm
Display Type	7-Segment
Millicandela Rating	9.8 mcd
Number of Characters [custom]	1
Package / Case	30.48 mm
Package / Case	1.2 in
Package / Case	10-DIP
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	1.339 "
Size / Dimension [x]	34 mm
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Size / Dimension [z]	10.5 mm
Size / Dimension [z]	0.413 "
Voltage - Forward (Vf) (Typ)	4 V
Wavelength - Peak	635 nm

LDS-AA14 Series

Part	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Wavelength - Peak	Display Type	Package / Case	Package / Case	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Number of Characters [custom]	Common Pin	Color
Lumex Opto/Components Inc. LDS-AA14RI	1 in	25.4 mm	105 mW	635 nm	7-Segment	30.48 mm	1.2 in	10-DIP	10 mA	4 V	24 mm	10.5 mm	1.339 "	0.413 "	0.945 in	34 mm	9.8 mcd	1	Common Anode	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDS-AA14 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 4V 10mA 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) 10-DIP (1.200", 30.48mm)
