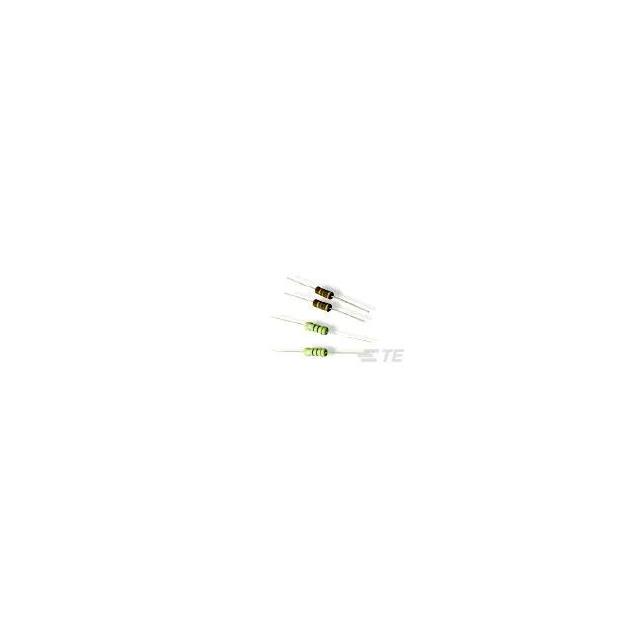

1-1625875-6

Active

TE Connectivity Passive Product

RES 1 OHM 5% 1/4W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 1 OHM 5% 1/4W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1-1625875-6

Composition	Carbon Composition
Features	Pulse Withstanding
Number of Terminations	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	1 Ohms
Size / Dimension [diameter]	0.094 "
Size / Dimension [diameter]	2.4 mm
Size / Dimension [z]	0.248 in
Size / Dimension [z]	6.3 mm
Supplier Device Package	Axial
Temperature Coefficient [Max]	400 ppm/°C
Temperature Coefficient [Min]	-700 ppm/°C
Tolerance	5 %

Part	Resistance	Supplier Device Package	Composition	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Number of Terminations	Power (Watts)	Power (Watts)	Package / Case	Features	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Passive Product 1-1625875-6	1 Ohms	Axial	Carbon Composition	-700 ppm/°C	400 ppm/°C	2	0.25 W	250 mW	Axial	Pulse Withstanding	0.248 in	0.094 "	2.4 mm	6.3 mm	5 %	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Ohms ±5% 0.25W, 1/4W Through Hole Resistor Axial Pulse Withstanding Carbon Composition

Technical documentation and resources

No documents available
