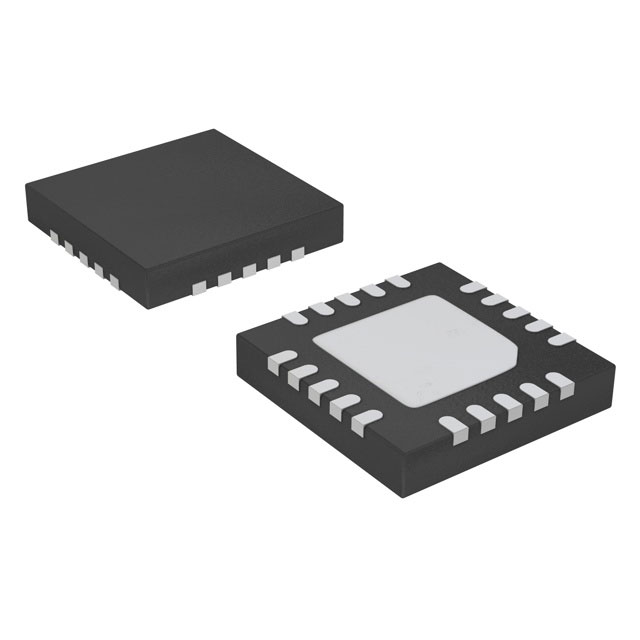

PE42742MLIBB-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 2.2GHZ 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PE42742MLIBB-Z
ActivepSemi Corporation
IC RF SWITCH SPDT 2.2GHZ 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PE42742MLIBB-Z |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 2.2 GHz |
| Frequency Range [Min] | 5 MHz |
| IIP3 | 53 dBm |
| Impedance | 75 Ohms |
| Insertion Loss | 1.7 dB |
| Isolation | 53.6 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 32 dBm |
| Package / Case | 20-VFQFN Exposed Pad |
| RF Type | CATV |
| Supplier Device Package | 20-QFN (4x4) |
| Test Frequency | 2.2 GHz |
| Topology | Absorptive |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.71 | |
| 101 | $ 1.37 | |||
| 1000 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 1.71 | ||
| 101 | $ 1.37 | |||
| 1000 | $ 1.13 | |||
| Tape & Reel (TR) | 3000 | $ 1.13 | ||
| 6000 | $ 0.97 | |||
Description
General part information
PE42742 Series
RF Switch IC CATV SPDT 2.2 GHz 75Ohm 20-QFN (4x4)
