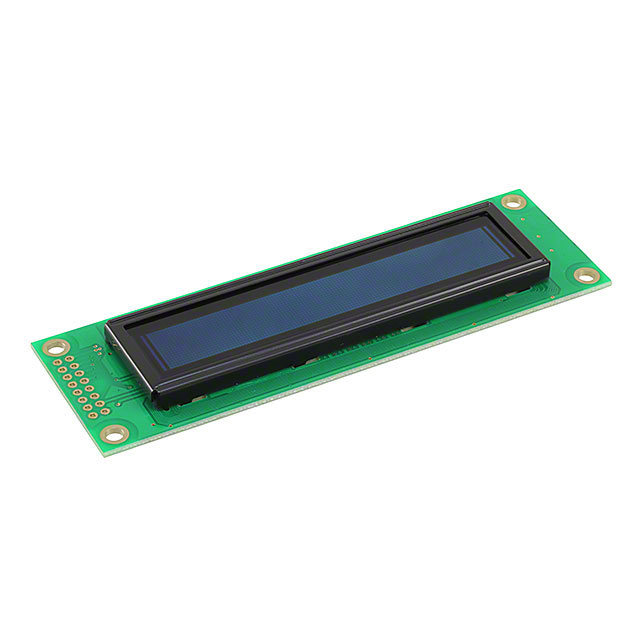

EA W202-XLG
ActiveDisplay Visions
OLED MODULE 40DIG 20 X 2 PASSIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EA W202-XLG
ActiveDisplay Visions
OLED MODULE 40DIG 20 X 2 PASSIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA W202-XLG |
|---|---|
| Background Color | Black |
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.2 mm |
| Character Size [z] | 5.55 mm |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Mode | Passive |
| Display Type | OLED |
| Dot Size [custom] | 0.65 mm |
| Dot Size [custom] | 0.6 mm |
| Interface | Parallel, 8-Bit |
| Number of Characters | 40 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 116 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 4.9 mm |
| Text Color | Yellow |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 46.22 | |
| 10 | $ 38.04 | |||
| 100 | $ 33.33 | |||
Description
General part information
EAW202 Series
Character Display Module Passive 5 x 8 Dots OLED Without Backlight Parallel, 8-Bit 116.00mm x 37.00mm x 4.90mm
