SSI-LXR3816USBD150

Active

Lumex Opto/Components Inc.

LED PANEL INDICATOR BLUE 3.5V

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED PANEL INDICATOR BLUE 3.5V

Technical Specifications

Parameters and characteristics for this part

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Voltage	Lens Color	Lens Style	Viewing Angle	Lens Transparency	Millicandela Rating	Type	Wavelength - Peak	Lens Size	Lens Size	Panel Cutout Shape	Wavelength - Peak [custom]	Current	Voltage [custom]	Voltage [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Termination Style	Termination Style
Lumex Opto/Components Inc. SSI-LXR3816SYD-150	8.13 mm	0.32 in	Yellow	2.1 V	Yellow	Round with Domed Top	60 °	Diffused	100 mcd	LED	590 nm	T-1 3/4	5 mm	Round
Lumex Opto/Components Inc. SSI-LXR3816SGD-150	8.13 mm	0.32 in	Green	2.2 V	Green	Round with Domed Top	60 °	Diffused	40 mcd	LED	565 nm	T-1 3/4	5 mm	Round
Lumex Opto/Components Inc. SSI-LXR3816IY46835	8.13 mm	0.32 in	Red Yellow		White	Round with Domed Top	60 °	Diffused		LED		T-1 3/4	5 mm	Round	585 nm 635 nm	12 mA 12 mA	5 V	5 V	20 mcd	15 mcd	914.4 mm	Wire Leads
Lumex Opto/Components Inc. SSI-LXR3816GD-150
Lumex Opto/Components Inc. SSI-LXR3816USBD150	8.13 mm	0.32 in	Blue	3.5 V	Blue	Round with Domed Top	60 °	Diffused	300 mcd	LED		T-1 3/4	5 mm	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

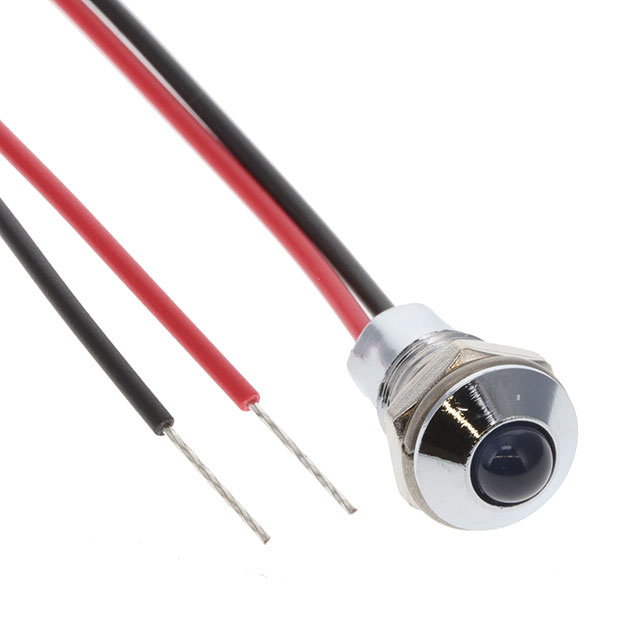

LED Panel Indicator Blue Diffused 60° 3.5V 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
