OSTHT030080

Active

On Shore Technology Inc.

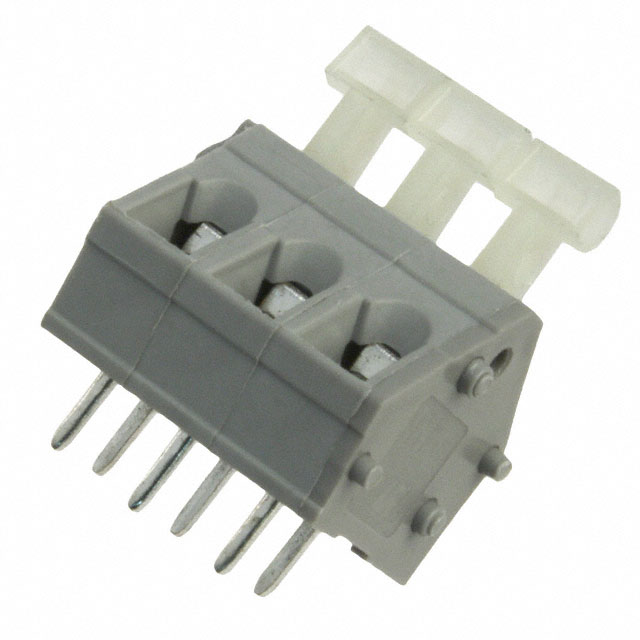

TERM BLOCK 3POS 5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLOCK 3POS 5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OSTHT030080

Clamp Material - Plating	Stainless, Steel
Color	Gray
Contact Material - Plating [custom]	Brass
Current	15 A
Features	Lever Actuated, Interlocking (Side)
Housing Material	Thermoplastic
Mating Orientation	Angled
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Voltage	300 V
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

Part	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Housing Material	Number of Levels	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Current	Mating Orientation	Clamp Material - Plating	Voltage	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Features	Color
On Shore Technology Inc. OSTHT030080	Through Hole	12 AWG	28 AWG	Thermoplastic	1	5 mm	0.197 in	Brass	15 A	Angled	Stainless Steel	300 V	Push-In Spring Screwless - Leg Spring	-30 ░C	105 ░C	3	Interlocking (Side) Lever Actuated	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Angled 0.197" (5.00mm) Through Hole
