EFM32ZG210F4-B-QFN32
ActiveSilicon Labs
IC MCU 32BIT 4KB FLASH 32QFN
Deep-Dive with AI
Search across all available documentation for this part.
EFM32ZG210F4-B-QFN32
ActiveSilicon Labs
IC MCU 32BIT 4KB FLASH 32QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM32ZG210F4-B-QFN32 |
|---|---|
| Connectivity | I2C, UART/USART, SPI, IrDA, EBI/EMI, SmartCard |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Data Converters | A/D 4x12b, D/A 1x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 24 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

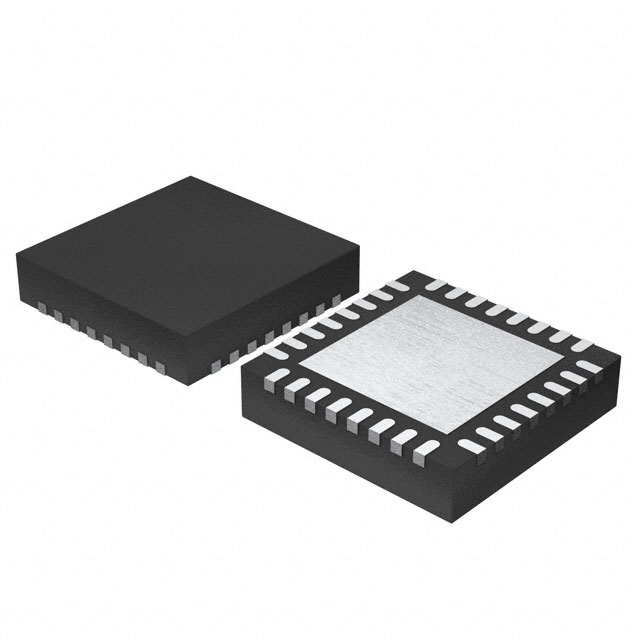

| Package / Case | 32-VQFN Exposed Pad |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S |
| Program Memory Size | 4 KB |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Speed | 24 MHz |
| Supplier Device Package | 32-QFN (6x6) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.8 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.98 V |
EFM32ZG210 Series
| Part | Package / Case | Program Memory Size | Program Memory Type | Peripherals | Number of I/O | Mounting Type | Connectivity | Oscillator Type | Operating Temperature [Max] | Operating Temperature [Min] | RAM Size | Data Converters | Core Processor | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Speed | Core Size | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silicon Labs | 32-VQFN Exposed Pad | 32 KB | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 4K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) |
Silicon Labs | 32-VQFN Exposed Pad | 16 KB | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 4K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) |
Silicon Labs | 32-VQFN Exposed Pad | 32 KB | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 4K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) |
Silicon Labs | 32-VQFN Exposed Pad | 32 KB | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 4K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) |
Silicon Labs | 32-VQFN Exposed Pad | 16 KB | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 4K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) |
Silicon Labs | 32-VQFN Exposed Pad | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 2K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) | |
Silicon Labs | 32-VQFN Exposed Pad | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 2K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) | |
Silicon Labs | 32-VQFN Exposed Pad | 16 KB | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 4K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) |
Silicon Labs | 32-VQFN Exposed Pad | 4 KB | FLASH | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 | Surface Mount | EBI/EMI I2C IrDA SmartCard SPI UART/USART | Internal | 85 °C | -40 °C | 2K x 8 | A/D 4x12b D/A 1x12b | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24 MHz | 32-Bit Single-Core | 32-QFN (6x6) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2450 | $ 1.72 | |
Description
General part information
EFM32ZG210 Series
ARM® Cortex®-M0+ Zero Gecko Microcontroller IC 32-Bit Single-Core 24MHz 4KB (4K x 8) FLASH 32-QFN (6x6)
