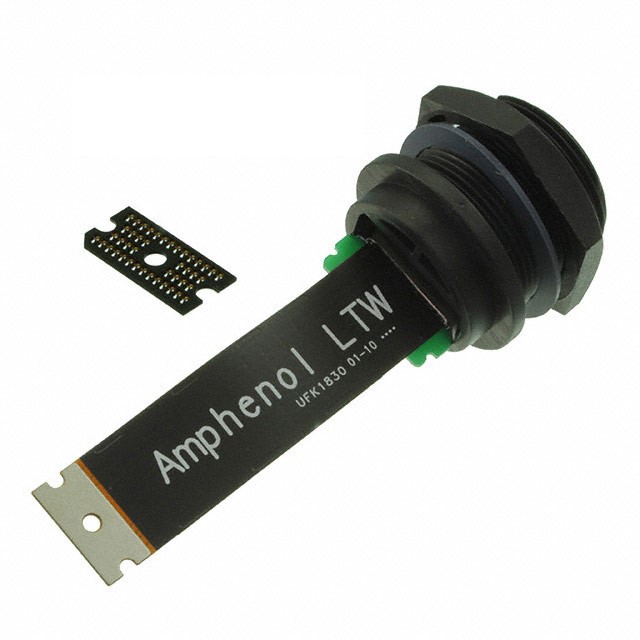

UC-00PMFY-SC7001

Active

Amphenol LTW

CONN RCP USB3.1 TYPC 24P PNL MNT

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCP USB3.1 TYPC 24P PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	UC-00PMFY-SC7001

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	0.25 A, 1.25 A, 5 A
Features	Circular Threaded Coupling
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Bulkhead - Front Side Nut
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	PC Board
Voltage - Rated	30 VAC

Part	Contact Finish	Current Rating (Amps)	Specifications	Ingress Protection	Material Flammability Rating	Features	Insulation Color	Gender	Voltage - Rated	Shielding	Termination	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Contacts	Number of Ports	Mating Cycles
Amphenol LTW UC-00PMFY-SC7001	Gold	0.25 A 1.25 A 5 A	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	IP67 - Dust Tight Waterproof	UL94 V-0	Circular Threaded Coupling	Black	Receptacle	30 VAC	Unshielded	PC Board	Bulkhead - Front Side Nut	85 °C	-40 °C	USB-C (USB TYPE-C)	24	1	10000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Panel Mount
