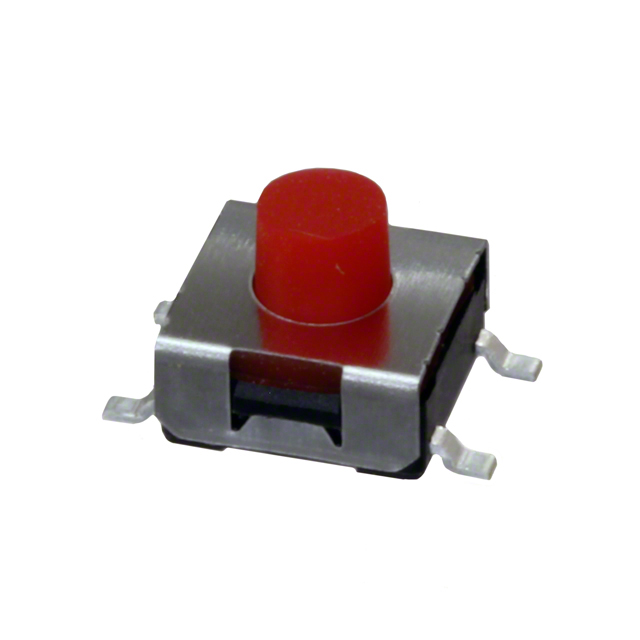

95CW06E3GWT

Active

Grayhill Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

95CW06E3GWT

Active

Grayhill Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	95CW06E3GWT

Actuator Height off PCB, Vertical	5.2 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Washable
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6.3 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.45 mm
Termination Style	Gull Wing

95CW06 Series

Part	Actuator Orientation	Mechanical Life	Contact Rating @ Voltage	Mounting Type	Switch Travel	Actuator Type	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Features	Termination Style	Outline [x]	Outline [y]	Illumination	Circuit	Switch Function	Actuator Height off PCB, Vertical	Operating Force
Grayhill Inc. 95CW06B1GWT	Top Actuated	100000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C	3.1 mm	Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom
Grayhill Inc. 95CW06E2JT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	5.2 mm	180 gf
Grayhill Inc. 95CW06A1GWT	Top Actuated	100000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	2.3 mm
Grayhill Inc. 95CW06C3JRT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.5 mm	260 gf
Grayhill Inc. 95CW06D3GWT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.8 mm	260 gf
Grayhill Inc. 95CW06D4JT	Top Actuated		0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.8 mm	520 gf
Grayhill Inc. 95CW06E3GWT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	Gull Wing	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	5.2 mm	260 gf
Grayhill Inc. 95CW06D3JRT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	3.8 mm	260 gf
Grayhill Inc. 95CW06E3JT	Top Actuated	500000 Cycles	0.05 A 12 VDC	Surface Mount	0.45 mm	Standard	Silicone Rubber	70 °C	-25 °C		Washable	J Lead	6.3 mm	6.2 mm	Non-Illuminated	SPST-NO	Off-Mom	5.2 mm	260 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.02
		10	$ 1.96
		75	$ 1.66
		150	$ 1.55
		300	$ 1.41
		525	$ 1.31
		1050	$ 1.21
		2550	$ 1.10
		5025	$ 1.02

Description

General part information

95CW06 Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources
