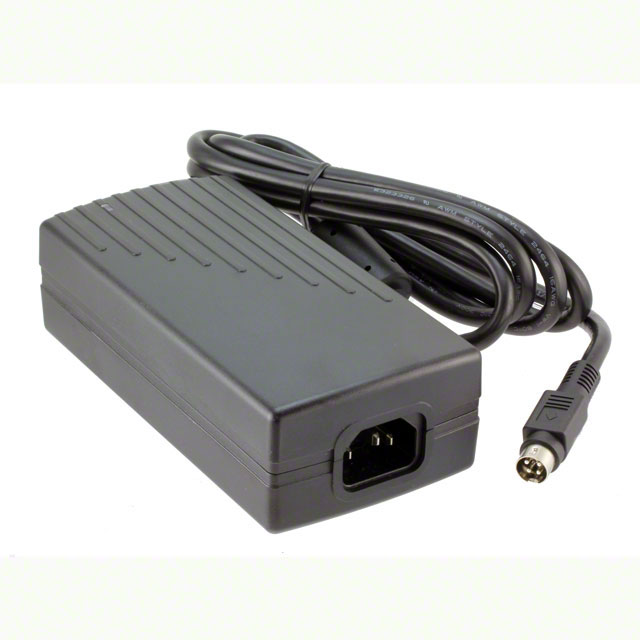

DT080AF-6-3
ActiveTri-Mag, LLC
AC/DC DESKTOP ADAPTER 24V 77W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DT080AF-6-3
ActiveTri-Mag, LLC
AC/DC DESKTOP ADAPTER 24V 77W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DT080AF-6-3 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 3.2 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 77 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.71 in |
| Size / Dimension [x] | 145 mm |
| Size / Dimension [y] | 2.83 in |
| Size / Dimension [y] | 72 mm |
| Size / Dimension [z] | 1.65 " |
| Size / Dimension [z] | 42 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
| Weight | 1.1 lbs |
| Weight | 499 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 100 | $ 61.08 | |
Description
General part information
DT080AF Series
24V 77 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
