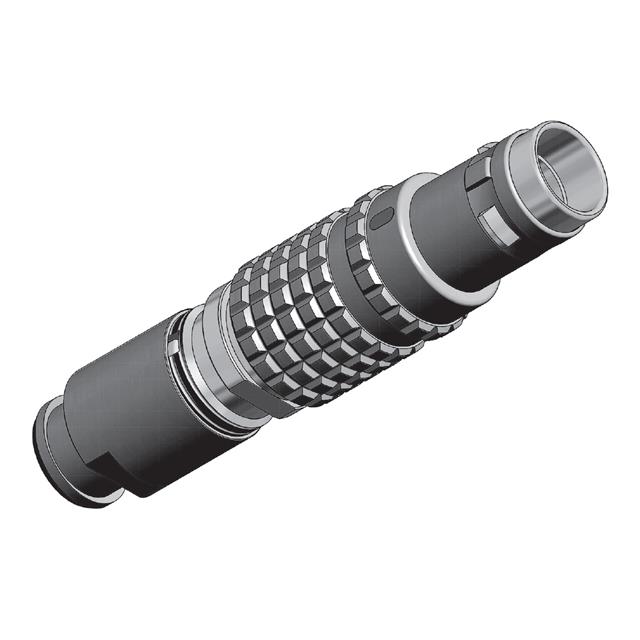

FGG.2T.514.CYCC75Z
ActiveLEMO
CABLE MOUNT PLUG CAT6A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FGG.2T.514.CYCC75Z
ActiveLEMO
CABLE MOUNT PLUG CAT6A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FGG.2T.514.CYCC75Z |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [Max] [custom] | 0.295 in |
| Cable Opening [Max] [custom] | 7.5 mm |
| Cable Opening [Min] [custom] | 0.28 in |
| Cable Opening [Min] [custom] | 7.1 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 514 |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.55 | |
Description
General part information
FGG.2T Series
14 Position Circular Connector Plug, Male Pins Solder Cup
