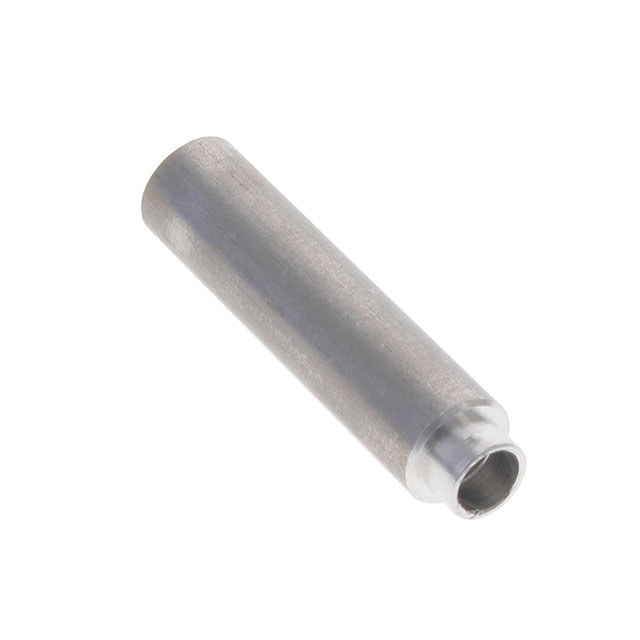

1526-A-3-AL
ActiveRAF Electronic Hardware
3_16-ROUND_SWAGE_SPACER
Deep-Dive with AI
Search across all available documentation for this part.
1526-A-3-AL
ActiveRAF Electronic Hardware
3_16-ROUND_SWAGE_SPACER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1526-A-3-AL |
|---|---|
| Between Board Height | 0.75 in |
| Between Board Height | 0.75 in |
| Between Board Height | 19.05 mm |
| Diameter - Inside [diameter] | 0.101 in |
| Diameter - Inside [diameter] | 2.57 mm |
| Diameter - Outside [diameter] | 4.76 mm |
| Diameter - Outside [diameter] | 0.188 " |
| Gender | Swage, Female |
| Length - Overall | 20.96 mm |
| Length - Overall | 0.825 in |
| Material | Aluminum |
| Threaded/Unthreaded | Unthreaded |
| Type | Round Spacer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.98 | |
| 5 | $ 1.65 | |||
| 10 | $ 1.48 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.19 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.12 | |||
| 500 | $ 1.09 | |||
| 1000 | $ 0.99 | |||
Description
General part information
1526-A Series
Round Spacer Unthreaded Aluminum 0.750" (19.05mm) 3/4"
