PM5-AP7B3.4V
ObsoleteBivar Inc.

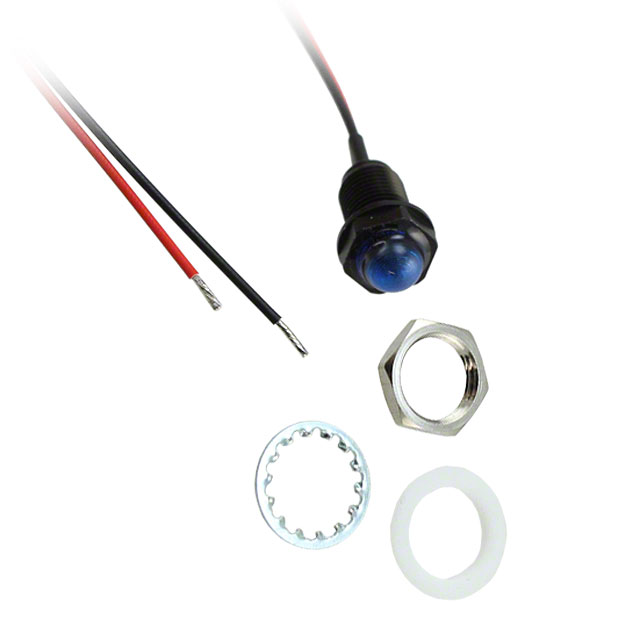

PANEL MOUNT ASSEMBLY BLUE, 8.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM5-AP7B3.4V
ObsoleteBivar Inc.
PANEL MOUNT ASSEMBLY BLUE, 8.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-AP7B3.4V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 7 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 400 mcd |
| Panel Cutout Dimensions | 8.64 mm |
| Panel Cutout Dimensions | 0.34 in |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads |
| Termination Style | 5.9 " |
| Type | LED |
| Viewing Angle | 160 ° |
| Voltage | 3.4 V |
| Wavelength - Peak | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM5-AP7B3.4 Series
LED Panel Indicator Blue Diffused 160° 3.4V 20mA Wire Leads - 5.9" (150.00mm)
