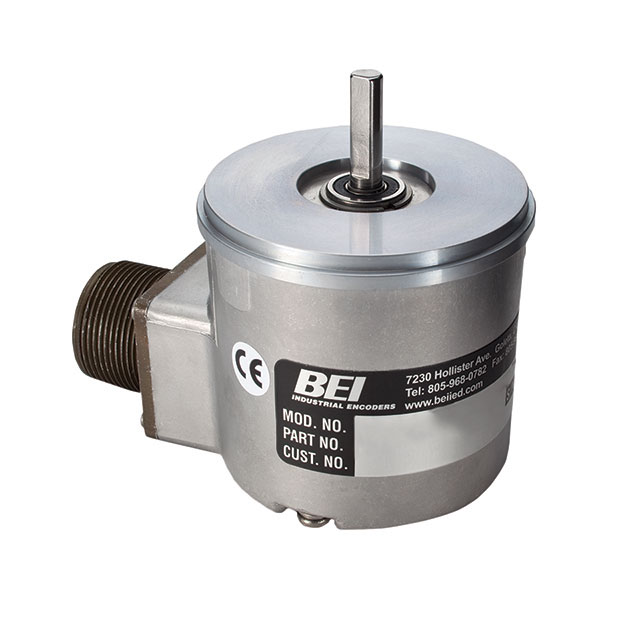

L25G-F12-SB-2500-ABZC-28V/V-SM18

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2500PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2500PPR

Technical Specifications

Parameters and characteristics for this part

Specification	L25G-F12-SB-2500-ABZC-28V/V-SM18

Actuator Type	Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Servo Mount
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	2500
Rotational Life (Cycles Min) [Min]	1B
Termination Style	Connector
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

Part	Pulses per Revolution	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Mounting Type	Built in Switch	Termination Style	Detent	Encoder Type	Actuator Type	Rotational Life (Cycles Min) [Min]
Sensata-BEI Sensors L25G-F12-SB-2500-ABZC-28V/V-SM18	2500	5 V	28 V	Quadrature with Index (Incremental)	Servo Mount		Connector		Optical	Shaft	1B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ROTARY ENCODER OPTICAL 2500PPR

Technical documentation and resources

No documents available
