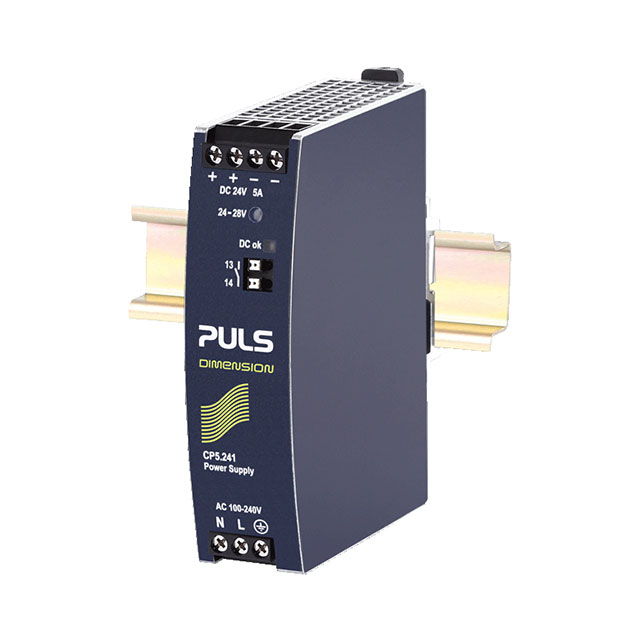

CP5.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	CP5.241

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial), Laboratory
Approval Agency	IECEx, IEC, ATEX, UL, EAC
Current - Output (Max) [Max]	5 A
DC Voltage - Input (Max) [Max]	150 V
DC Voltage - Input (Min) [Min]	110 V
Efficiency	93.6 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	102 mm
Size / Dimension [x]	4.02 in
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	61010-2-201, Class I Div 2, 62368-1
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Voltage - Output 1	Standard Number	Applications	Current - Output (Max) [Max]	Approval Agency	Input Type	DC Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Voltage - Isolation	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Voltage - Input (Max) [Max]
PULS, LP CP5.241-S1	24 V	61010-2-201 62368-1 Class I Div 2	Industrial ITE (Commercial) Laboratory	5 A	ATEX IEC IECEx UL	AC or DC	110 V	-25 °C	70 °C	93.6 %	85 VAC	264 VAC	Adjustable Output IP20 Load Sharing PFC Universal Input	500 V	1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	150 V
PULS, LP CP5.242	24 V	61010-2-201 62368-1	Industrial ITE (Commercial) Laboratory	5 A	EAC IEC UL	AC or DC	110 V	-25 °C	70 °C	93.6 %	85 VAC	264 VAC	Adjustable Output IP20 Load Sharing PFC Universal Input	500 V	1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	300 V
PULS, LP CP5.241-C1	24 V	61010-2-201 62368-1 Class I Div 2	Industrial ITE (Commercial) Laboratory	5 A	ATEX IEC IECEx UL	AC or DC	110 V	-25 °C	70 °C	93.6 %	85 VAC	264 VAC	Adjustable Output IP20 Load Sharing PFC Universal Input	500 V	1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	150 V
PULS, LP CP5.241	24 V	61010-2-201 62368-1 Class I Div 2	Industrial ITE (Commercial) Laboratory	5 A	ATEX EAC IEC IECEx UL	AC or DC	110 V	-25 °C	70 °C	93.6 %	85 VAC	264 VAC	Adjustable Output IP20 Load Sharing PFC Universal Input	500 V	1	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	150 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 216.00

General part information

AC/DC DIN RAIL SUPPLY 24V 120W
