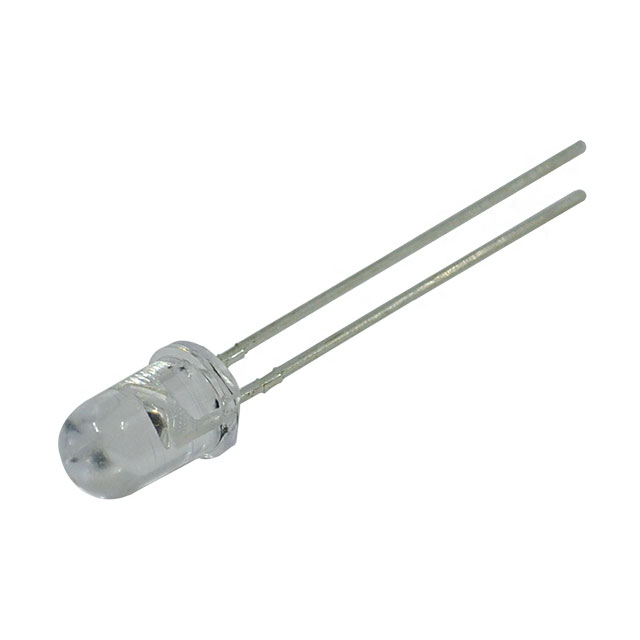

BIR-BM53E4G-1

Active

American Bright Optoelectronics Corporation

5MM 940 IR

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

5MM 940 IR

Technical Specifications

Parameters and characteristics for this part

Specification	BIR-BM53E4G-1

Current - DC Forward (If) (Max) [Max]	100 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Radiant Intensity (Ie) Min @ If [Min]	19.42 mW/sr
Type	Infrared (IR)
Viewing Angle	25 °
Voltage - Forward (Vf) (Typ)	1.25 V
Wavelength	940 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle	Package / Case	Mounting Type	Orientation	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Type	Voltage - Forward (Vf) (Typ)	Wavelength
American Bright Optoelectronics Corporation BIR-BM53E4G-1	85 °C	-40 °C	25 °	Radial	Through Hole	Top View	19.42 mW/sr	100 mA	Infrared (IR)	1.25 V	940 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20000	$ 0.06

General part information

Infrared (IR) Emitter 940nm 1.25V 100mA 19.42mW/sr @ 50mA 25° Radial
