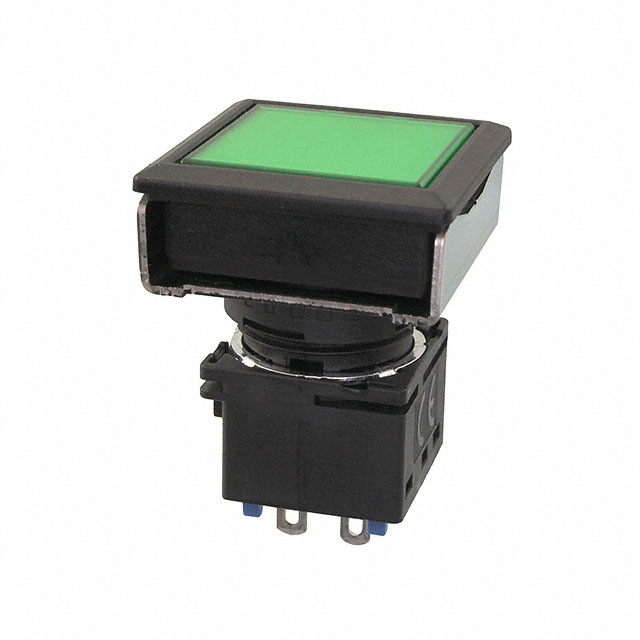

LBW7P-1T04G

Active

IDEC

LBW FLUSH PILOT 24V GREEN

Search across all available documentation for this part.

Active

IDEC

LBW FLUSH PILOT 24V GREEN

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Lens Style	Panel Cutout Shape	Ratings	Voltage	Lamp Color	Lens Size	Termination Style	Accessory Type
IDEC LBW7P-1T04VG	IP65	LED	0.89 "	0.89 in	22.5 mm	22.5 mm	Square with Flat Top	Square	AC/DC	24 V	Green	26 mm	PC Pin
IDEC LBW7P-0														LED - Holder
IDEC LBW7P-1T04W	IP65	LED	0.89 "	0.89 in	22.5 mm	22.5 mm	Square with Flat Top	Square	AC/DC	24 V	White	26 mm	Solder Lug
IDEC LBW7P-1T04VY	IP65	LED	0.89 "	0.89 in	22.5 mm	22.5 mm	Square with Flat Top	Square	AC/DC	24 V	Yellow	26 mm	PC Pin
IDEC LBW7P-1T04G	IP65	LED	0.89 "	0.89 in	22.5 mm	22.5 mm	Square with Flat Top	Square	AC/DC	24 V	Green	26 mm	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 24V Solder Lug
