VSKT500-12

Obsolete

Vishay General Semiconductor - Diodes Division

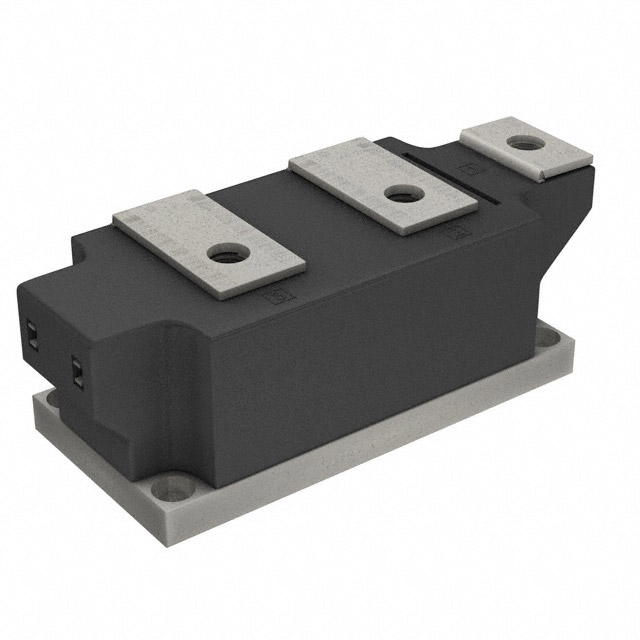

SCR DBL 2SCR 1200V 500A MAGNAPAK

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

SCR DBL 2SCR 1200V 500A MAGNAPAK

Technical Specifications

Parameters and characteristics for this part

Specification	VSKT500-12

Current - Gate Trigger (Igt) (Max) [Max]	200 mA
Current - Hold (Ih) (Max) [Max]	500 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	18700 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	17800 A
Current - On State (It (AV)) (Max) [Max]	500 A
Current - On State (It (RMS)) (Max)	785 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Package / Case	SUPER MAGN-A-PAK
Structure	Series Connection - All SCRs
Voltage - Off State	1.2 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Current - On State (It (RMS)) (Max)	Package / Case	Structure	Mounting Type	Current - On State (It (AV)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of SCRs, Diodes
Vishay General Semiconductor - Diodes Division VS-VSKT500-18PBF	18700 A	17800 A	500 mA	200 mA	1.8 kV	785 A	SUPER MAGN-A-PAK	Series Connection - All SCRs	Chassis Mount	500 A	-40 °C	130 °C	2 SCRs
Vishay General Semiconductor - Diodes Division VSKT500-12	18700 A	17800 A	500 mA	200 mA	1.2 kV	785 A	SUPER MAGN-A-PAK	Series Connection - All SCRs	Chassis Mount	500 A			2 SCRs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.2 kV 785 A Series Connection - All SCRs Chassis Mount SUPER MAGN-A-PAK
