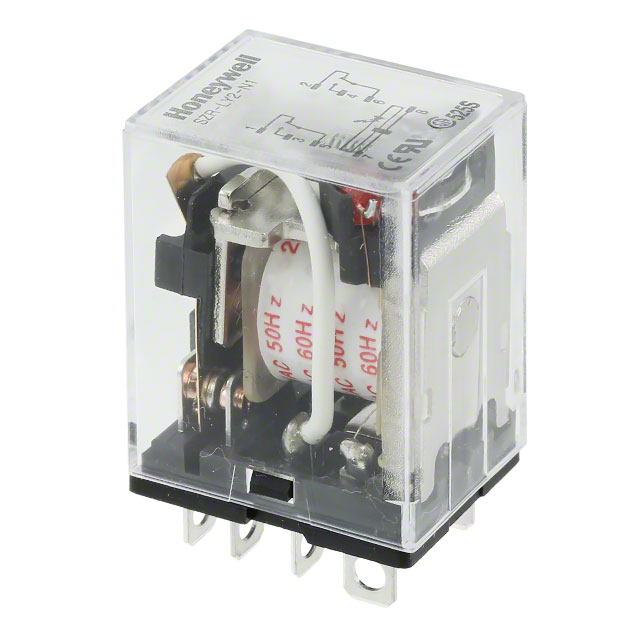

SZR-LY2-N1-DC12V

Active

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE DPDT 10A 12V

Deep-Dive with AI

Search across all available documentation for this part.

SZR-LY2-N1-DC12V

Active

Honeywell Sensing and Productivity Solutions

RELAY GEN PURPOSE DPDT 10A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZR-LY2-N1-DC12V

Approval Agency	CSA, UR, CE
Coil Resistance	160 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Features	Lighted Indicator
Load - Max Switching	2500 VA, 1250 W
Mounting Type	Socketable
Must Operate Voltage	9.6 VDC
Must Release Voltage	1.2 VDC
Operate Time	25 ms
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	250 VAC, 125 VDC
Termination Style	Plug In

SZR-LY2 Series

Part	Contact Form	Mounting Type	Load - Max Switching	Release Time	Operate Time	Coil Voltage	Termination Style	Contact Rating (Current)	Must Release Voltage	Approval Agency	Coil Type	Must Operate Voltage	Switching Voltage	Coil Resistance	Relay Type	Features	Contact Material	Coil Current
Honeywell Sensing and Productivity Solutions SZR-LY2-N1-DC24V	DPDT (2 Form C)	Socketable	1250 W 2500 VA	25 ms	25 ms	24 VDC	Plug In	10 A	2.4 VDC	CE CSA UR	Non Latching	19.2 VDC	125 VDC 250 VAC	650 Ohms	General Purpose	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	40.9 mA
Honeywell Sensing and Productivity Solutions SZR-LY2-1-AC220V	DPDT (2 Form C)	Socketable	1250 W 2500 VA	25 ms	25 ms	220 VAC/DC	Plug In	10 A	66 VAC	CE CSA UR	Non Latching	176 VAC	125 VDC 250 VAC	12.95 kOhms	General Purpose		Silver Cadmium Oxide (AgCdO)	5.3 mA
Honeywell Sensing and Productivity Solutions SZRLY21PAC110120V	DPDT (2 Form C)	Through Hole	1250 W 2500 VA	25 ms	25 ms	120 VAC	PC Pin	10 A	36 VAC	CE CSA UR	Non Latching	96 VAC	125 VDC 250 VAC	4.43 kOhms	General Purpose		Silver Cadmium Oxide (AgCdO)	27 mA
Honeywell Sensing and Productivity Solutions SZR-LY2-N1-AC12V	DPDT (2 Form C)	Socketable	1250 W 2500 VA	25 ms	25 ms	12 VAC/DC	Plug In	10 A	3.6 VAC	CE CSA UR	Non Latching	9.6 VAC/DC	125 VDC 250 VAC	46 Ohms	General Purpose	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	261 mA
Honeywell Sensing and Productivity Solutions SZR-LY2-N1DC6V	DPDT (2 Form C)	Socketable	1250 W 2500 VA	25 ms	25 ms		Plug In Quick Connect - 0.197" (5.0mm)	10 A	0.6 VDC	CE CSA UR	Non Latching	4.8 VDC	125 VDC 250 VAC	40 Ohms	General Purpose	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	150 mA
Honeywell Sensing and Productivity Solutions SZR-LY2-N1-AC220V	DPDT (2 Form C)	Socketable	1250 W 2500 VA	25 ms	25 ms	220 VAC/DC	Plug In	10 A	66 VAC	CE CSA UR	Non Latching	176 VAC	125 VDC 250 VAC	12.95 kOhms	General Purpose	Lighted Indicator	Silver Cadmium Oxide (AgCdO)	9.3 mA
Honeywell Sensing and Productivity Solutions SZR-LY2-1-AC24V	DPDT (2 Form C)	Socketable	1250 W 2500 VA	25 ms	25 ms	24 VAC	Plug In	10 A	7.2 VAC	CE CSA UR	Non Latching	18 VAC	125 VDC 250 VAC	180 Ohms	General Purpose		Silver Cadmium Oxide (AgCdO)	46 mA
Honeywell Sensing and Productivity Solutions SZR-LY2-N1-DC12V	DPDT (2 Form C)	Socketable	1250 W 2500 VA	25 ms	25 ms	12 VDC	Plug In	10 A	1.2 VDC	CE CSA UR	Non Latching	9.6 VDC	125 VDC 250 VAC	160 Ohms	General Purpose	Lighted Indicator	Silver Cadmium Oxide (AgCdO)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SZR-LY2 Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
