M029GGC0AE

Active

Nuvoton Technology Corporation

M0-64K AP+4KRAM+UART+SPI+I2C+PWM

Search across all available documentation for this part.

Active

Nuvoton Technology Corporation

M0-64K AP+4KRAM+UART+SPI+I2C+PWM

Technical Specifications

Parameters and characteristics for this part

Specification	M029GGC0AE

Connectivity	IrDA, SMBus, UART/USART, I2C, SPI
Core Processor	ARM® Cortex®-M0
Core Size	32-Bit
Data Converters	D/A 2x12b, A/D 11x12b SAR
Mounting Type	Surface Mount
Number of I/O	19
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

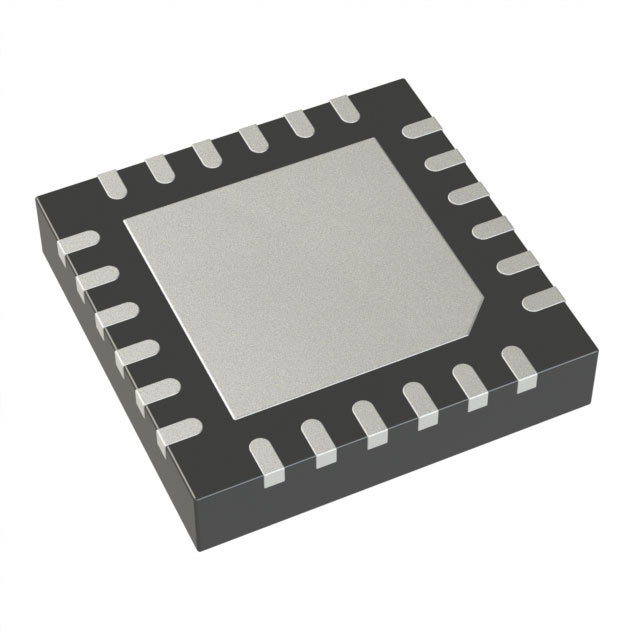

Package / Case	24-VFQFN
Peripherals	PWM, WDT, DMA, Brown-out Detect/Reset, POR, LVR
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	2K x 8
Speed	48 MHz
Supplier Device Package	24-QFN (3x3)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	RAM Size	Package / Case	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Connectivity	Mounting Type	Number of I/O	Oscillator Type	Speed	Core Size	Program Memory Type	Peripherals	Data Converters	Supplier Device Package
Nuvoton Technology Corporation M029GGC0AE	3.6 V	2.7 V	2K x 8	24-VFQFN	32 KB	105 °C	-40 °C	ARM® Cortex®-M0	I2C IrDA SMBus SPI UART/USART	Surface Mount	19	Internal	48 MHz	32-Bit	FLASH	Brown-out Detect/Reset DMA LVR POR PWM WDT	A/D 11x12b SAR D/A 2x12b	24-QFN (3x3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	416	$ 2.00

General part information

ARM® Cortex®-M0 NuMicro® M029G Microcontroller IC 32-Bit 48MHz 32KB (32K x 8) FLASH 24-QFN (3x3)

Technical documentation and resources

No documents available
