ITNA-0239-D202

Active

SCHURTER Inc.

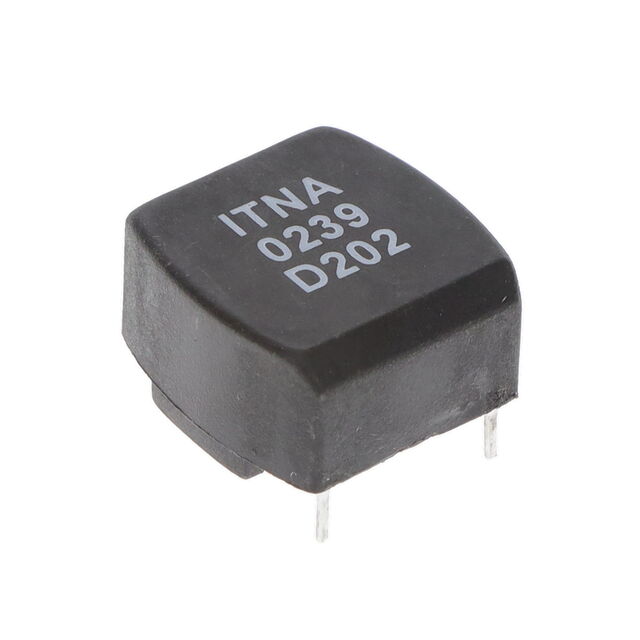

ITNA PULSE TRANSFORMER THT 0.17A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITNA PULSE TRANSFORMER THT 0.17A

Technical Specifications

Parameters and characteristics for this part

Specification	ITNA-0239-D202

ET (Volt-Time)	400 VµS
Inductance	2.2 mH
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Size / Dimension [x]	0.878 in
Size / Dimension [x]	22.3 mm
Size / Dimension [y]	0.894 in
Size / Dimension [y]	22.7 mm
Transformer Type	SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary	1:1
Weight	0.384 oz
Weight	10.89 g

Part	Mounting Type	Turns Ratio - Primary:Secondary	Weight	Weight	Transformer Type	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Operating Temperature [custom]	ET (Volt-Time)	Size / Dimension [x]	Size / Dimension [y]
SCHURTER Inc. ITNA-0249-D104	Through Hole	1:1	9.12 g	0.32 oz	SCR and Triac Trigger (Encapsulated)	0.701 in 17.8 mm	0.717 in 18.2 mm	13 mm	0.512 "	3.5 mH	-25 °C 100 °C	300 VµS
SCHURTER Inc. ITNA-0239-D202	Through Hole	1:1	10.89 g	0.384 oz	SCR and Triac Trigger (Encapsulated)	22.3 mm	22.7 mm			2.2 mH	-25 °C 100 °C	400 VµS	0.878 in	0.894 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2mH SCR and Triac Trigger (Encapsulated) Pulse Transformer 1:1 Through Hole
