LVS1-04C05-5070-00

Active

New Energy

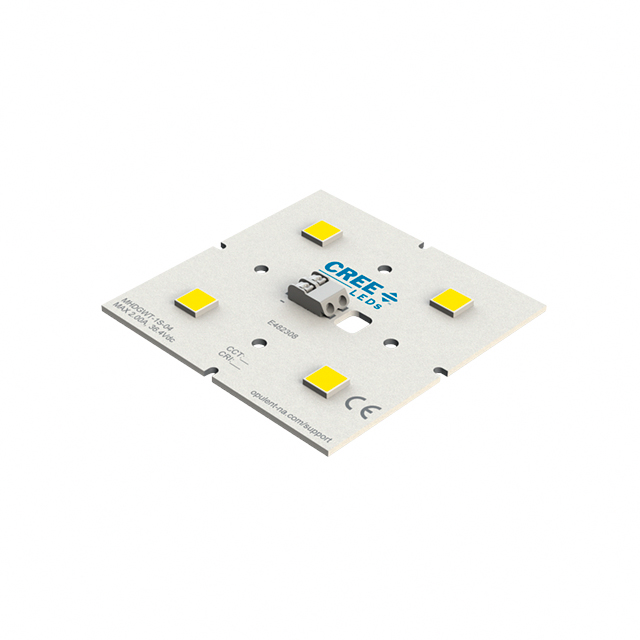

LED MOD MHD-G COOL WHT SQU 5000K

Search across all available documentation for this part.

Active

New Energy

LED MOD MHD-G COOL WHT SQU 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	LVS1-04C05-5070-00

CCT (K)	5000 K
CCT (K)	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Current - Max [Max]	2 A
Current - Test	350 mA
Lens Type	Flat
Lumens/Watt @ Current - Test	148 lm/W
Luminous Flux @ Current/Temperature	3537 lm
Size / Dimension [x]	70 mm
Size / Dimension [y]	70 mm
Temperature - Test	85 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	34.2 V

Part	Size / Dimension [x]	Size / Dimension [y]	Lens Type	Color	Current - Test	Luminous Flux @ Current/Temperature	Height [z]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	CCT (K)	Type	Configuration	Temperature - Test	CRI (Color Rendering Index)	Current - Max [Max]	CCT (K)
New Energy LVS1-04C05-3090-00	70 mm	70 mm	Flat	Warm White	350 mA	2670 lm	1.52 mm	34.2 V	111 lm/W	3000 K	LED Module	Square	85 °C	90	2 A
New Energy LVS1-04C05-4080-00	70 mm	70 mm	Flat	Neutral White	350 mA	3070 lm	1.52 mm	34.2 V	128 lm/W	4000 K	LED Module	Square	85 °C	80	2 A
New Energy LVS1-04C05-5770-00	70 mm	70 mm	Flat	Cool White	350 mA	3537 lm	1.52 mm	34.2 V	148 lm/W	5700 K	LED Module	Square	85 °C	70	2 A
New Energy LVS1-04C05-2790-00	70 mm	70 mm	Flat	Warm White	350 mA	2492 lm		34.2 V	104 lm/W	2700 K	LED Module	Square	85 °C	90	2 A
New Energy LVS1-04C05-4070-00	70 mm	70 mm	Flat	Neutral White	350 mA	3304 lm		34.2 V	138 lm/W	4000 K	LED Module	Square	85 °C	70	2 A
New Energy LVS1-04C05-5070-00	70 mm	70 mm	Flat	Cool White	350 mA	3537 lm		34.2 V	148 lm/W	5000 K	LED Module	Square	85 °C	70	2 A	5-Step MacAdam Ellipse
New Energy LVS1-04C05-2780-00	70 mm	70 mm	Flat	Warm White	350 mA	2870 lm	1.52 mm	34.2 V	120 lm/W	2700 K	LED Module	Square	85 °C	80	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 30.91

General part information

LED Lighting COBs Engines Modules LED Module MHD-G White, Cool Square
