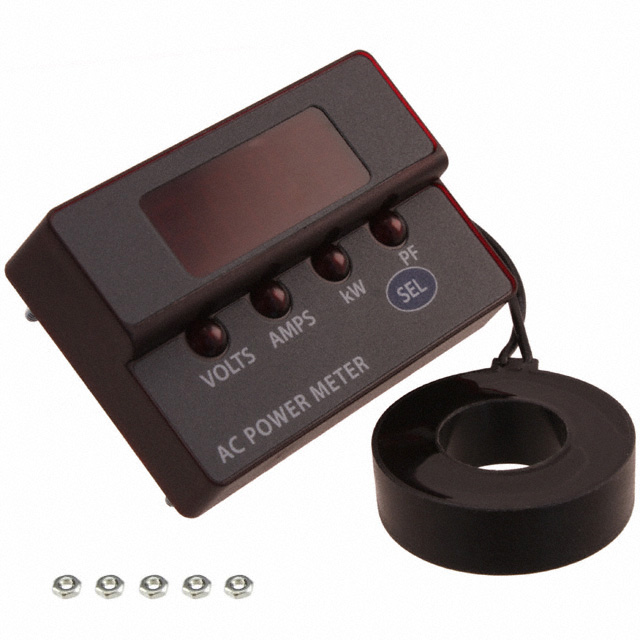

ACM20-2-AC1-R-C
Murata Power Solutions Inc.
MULTI METER 0-10A LED PANEL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACM20-2-AC1-R-C
Murata Power Solutions Inc.
MULTI METER 0-10A LED PANEL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM20-2-AC1-R-C |
|---|---|
| Display Characters - Height [z] | 9.14 mm |
| Display Characters - Height [z] | 0.36 in |
| Display Type | LED - Red Characters |
| Features | Built In Current Transformer (Primary) |
| Measuring Range [Max] | 10 A |
| Measuring Range [Min] | 0 A |
| Measuring Type | Wattage, Voltage, Current |
| Mounting Type | Panel Mount - Surface |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Termination Style | Screw Terminal |
| Type | Energy Monitor |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 85 VAC |
| Weight | 43.09 g |
| Weight | 0.095 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.08 | |
| 5 | $ 71.32 | |||
| 10 | $ 65.31 | |||
| 25 | $ 60.06 | |||
| 50 | $ 55.48 | |||
Description
General part information
ACM20-2 Series
Energy Monitor LED - Red Characters Display Panel Mount - Surface
