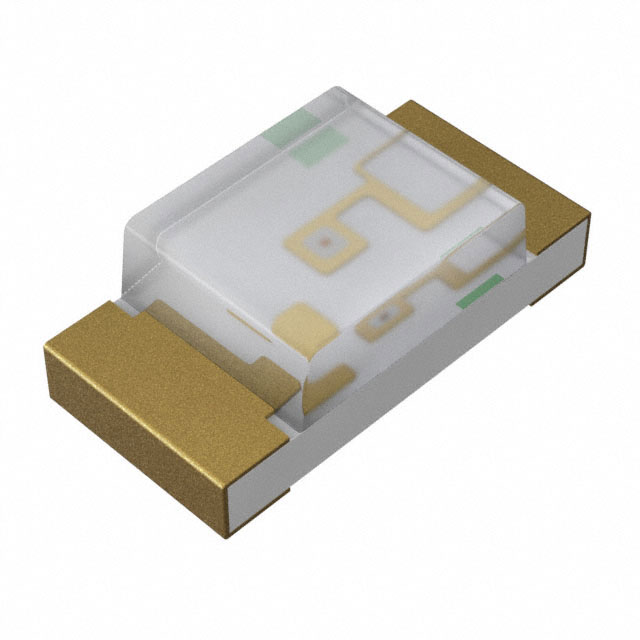

AP3216SURCK

Active

Kingbright

LED RED CLEAR CHIP SMD

Search across all available documentation for this part.

Active

Kingbright

LED RED CLEAR CHIP SMD

Technical Specifications

Parameters and characteristics for this part

Part	Color	Mounting Type	Lens Color	Lens Size [y]	Lens Size [x]	Configuration	Lens Style	Current - Test	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Transparency	Supplier Device Package	Package / Case	Viewing Angle	Height (Max) [Max] [z]	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant
Kingbright AP3216SYC	Yellow	Surface Mount	Colorless	1.6 mm	2 mm	Standard	Rectangle with Flat Top	20 mA	150 mcd	2 V	Clear	SMD	1206 (3216 Metric)	120 °	1.1 mm	590 nm	1.6 mm	3.2 mm	588 nm
Kingbright AP3216ID	Red	Surface Mount	Red	1.6 mm	2 mm	Standard	Rectangle with Flat Top	20 mA	12.5 mcd	2 V	Diffused	Chip LED	1206 (3216 Metric)	60 °	1.1 mm	627 nm	1.6 mm	3.2 mm	625 nm
Kingbright AP3216SYCK	Yellow	Surface Mount	Colorless	1.6 mm	2 mm	Standard	Rectangle with Flat Top	20 mA	150 mcd	2 V	Clear	SMD	1206 (3216 Metric)	120 °	1.1 mm	590 nm	1.6 mm	3.2 mm	590 nm
Kingbright AP3216SURCK	Red	Surface Mount	Colorless	1.6 mm	2 mm	Standard	Rectangle with Flat Top	20 mA	80 mcd	1.95 V	Clear	Chip LED	1206 (3216 Metric)	120 °	1.1 mm	650 nm	1.6 mm	3.2 mm	630 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 630nm LED Indication - Discrete 1.95V 1206 (3216 Metric)
