XS2C-D422

Active

Omron Electronics Inc-EMC Div

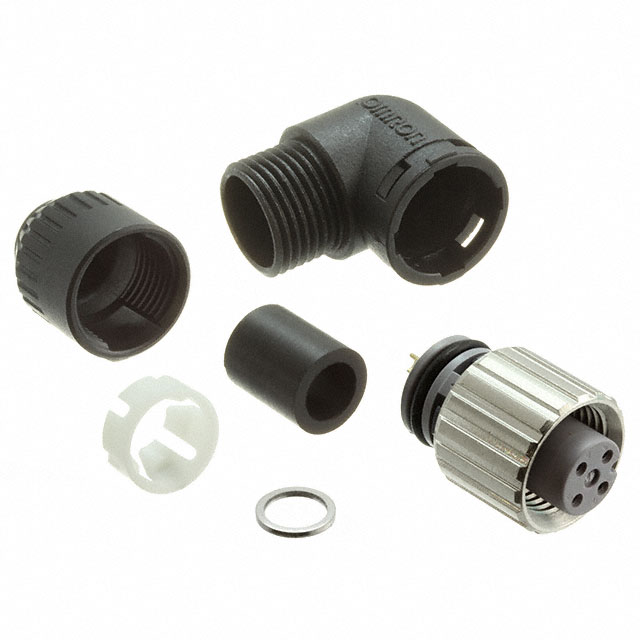

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XS2C-D422

Active

Omron Electronics Inc-EMC Div

CONN RCPT FMALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XS2C-D422

Backshell Material, Plating	Polybutylene Terephthalate (PBT)
Cable Opening [Max] [custom]	0.236 in
Cable Opening [Max] [custom]	6 mm
Cable Opening [Min] [custom]	5 mm
Cable Opening [Min] [custom]	0.197 in
Color	Black, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-4
Shielding	Unshielded
Voltage Rating	250 VAC

XS2C Series

Part	Shell Finish	Color	Mounting Type	Features	Voltage Rating	Shielding	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Ingress Protection	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Contact Material	Shell Material	Current Rating (Amps)	Insert Material	Number of Positions	Shell Size - Insert	Material Flammability Rating	Contact Finish - Mating	Orientation	Termination	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Omron Electronics Inc-EMC Div XS2C-A421	Nickel	Black Silver	Free Hanging (In-Line)	Backshell Coupling Nut	250 VAC	Unshielded	Metal	16 Áin	0.41 Ám	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	70 °C	-25 °C	0.236 in	6 mm	5 mm	0.197 in	Brass	Brass	4 A	Polybutylene Terephthalate (PBT)	4	M12-4	UL94 V-0	Gold	Keyed
Omron Electronics Inc-EMC Div XS2C-D4S1	Nickel	Black Silver	Free Hanging (In-Line)	Backshell Coupling Nut	250 VAC	Unshielded	Metal	16 Áin	0.41 Ám	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	70 °C	-25 °C					Brass	Brass	4 A	Polybutylene Terephthalate (PBT)	4	M12-4	UL94 V-0	Gold	Keyed	Screw	0.118 in 0.236 in	3 mm 6 mm
Omron Electronics Inc-EMC Div XS2C-A425	Nickel	Black Silver	Free Hanging (In-Line)	Backshell Coupling Nut	250 VAC	Unshielded	Metal	16 Áin	0.41 Ám	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	70 °C	-25 °C					Brass	Brass	4 A	Polybutylene Terephthalate (PBT)	4	M12-4	UL94 V-0	Gold	Keyed				0.157 in	0.118 in	4 mm	3 mm
Omron Electronics Inc-EMC Div XS2C-D422	Nickel	Black Silver	Free Hanging (In-Line) Right Angle	Backshell Coupling Nut	250 VAC	Unshielded	Metal	16 Áin	0.41 Ám	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	70 °C	-25 °C	0.236 in	6 mm	5 mm	0.197 in	Brass	Brass	4 A	Polybutylene Terephthalate (PBT)	4	M12-4	UL94 V-0	Gold	Keyed
