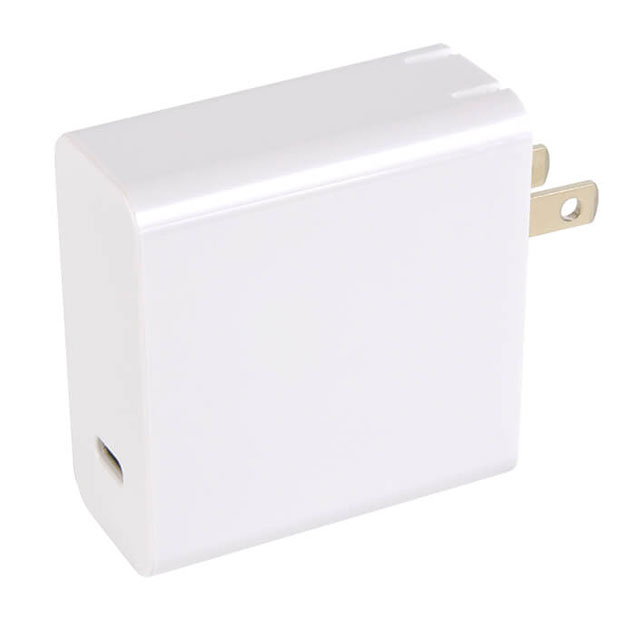

SWC45-P59121520-NW
ActiveCUI Inc.
AC/DC WALL MNT ADAPT 5V-20V 45W
Deep-Dive with AI
Search across all available documentation for this part.
SWC45-P59121520-NW
ActiveCUI Inc.
AC/DC WALL MNT ADAPT 5V-20V 45W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SWC45-P59121520-NW |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | FCC, CSA, UL |
| Current - Output (Max) | 2.25 A, 3 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | USB C Receptacle |
| Power (Watts) | 45 W |
| Region Utilized | North America |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [x] | 2.36 in |
| Size / Dimension [y] | 28 mm |
| Size / Dimension [y] | 1.1 in |
| Size / Dimension [z] | 2.26 " |
| Size / Dimension [z] | 57.3 mm |
| Standard Number | C22.2 No. 60950-1, 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 20 V, 15 VDC, 5 V, 12 V, 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 3000 | $ 20.04 | |
Description
General part information
SWC45 Series
5V, 9V, 12V, 15V, 20V 45 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
