2243C SL002
ActiveALPHA WIRE
MULTI-PAIR 6COND 18AWG SLATE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2243C SL002 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.357 in |
| Jacket (Insulation) Diameter [diameter] | 9.06 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.94 mm |
| Jacket (Insulation) Thickness | 0.037 in |
| Jacket Color | Slate |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 6 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 3.50 | |
| 1000 | $ 3.33 | |||
| 1500 | $ 3.30 | |||
Description
General part information
2243C Series

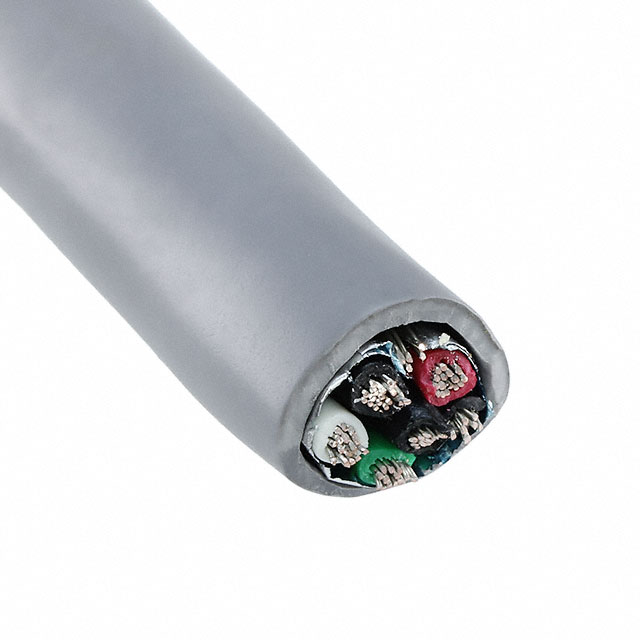

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG Foil 500.0' (152.4m)
