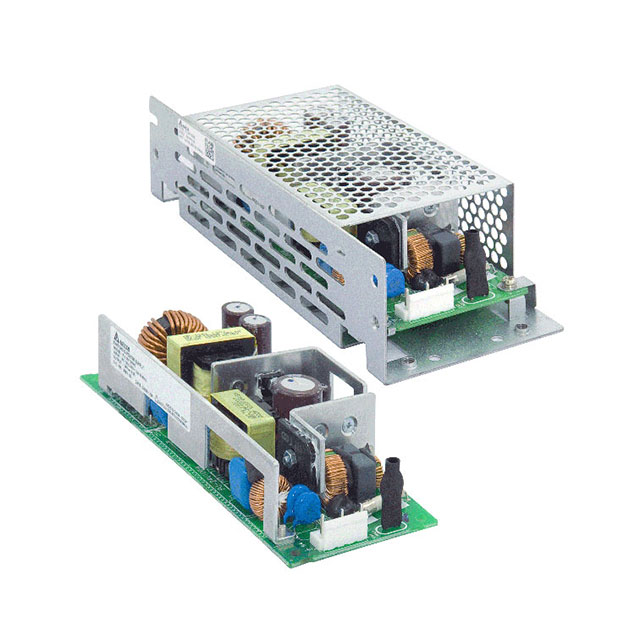

PJ-12V100WCRA

Active

Delta Electronics

AC/DC CONVERTER 12V 100W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 12V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-12V100WCRA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Efficiency	87.5 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W
Size / Dimension [x]	7.28 in
Size / Dimension [x]	185 mm
Size / Dimension [y]	2.83 in
Size / Dimension [y]	72 mm
Size / Dimension [z]	1.65 "
Size / Dimension [z]	45 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Approval Agency	Features	Power (Watts)	Applications	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Voltage - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Isolation
Delta Electronics PJ-12V100WBNA	CB CE cURus TUV	Adjustable Output PFC Universal Input	100 W	ITE (Commercial)	1	33 mm	2.44 "	155 mm	6.1 in	62 mm	1.3 "	Conformal Coated Open Frame	12 V	87.5 %	-10 °C	70 °C	Chassis Mount	3000 V
Delta Electronics PJ-12V100WBRA	CB CE cURus TUV	Adjustable Output PFC Remote On/Off Universal Input	100 W	ITE (Commercial)	1	33 mm	2.44 "	155 mm	6.1 in	62 mm	1.3 "	Open Frame	12 V	87.5 %	-10 °C	70 °C	Chassis Mount	3000 V
Delta Electronics PJ-12V100WCRA	CB CE cURus TUV	Adjustable Output PFC Remote On/Off Universal Input	100 W	ITE (Commercial)	1	45 mm	2.83 in	185 mm	7.28 in	72 mm	1.65 "	Enclosed	12 V	87.5 %	-10 °C	70 °C	Chassis Mount	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 51.21

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
