19S601-271L5

Active

Rosenberger

CONN SMP PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMP PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	19S601-271L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms

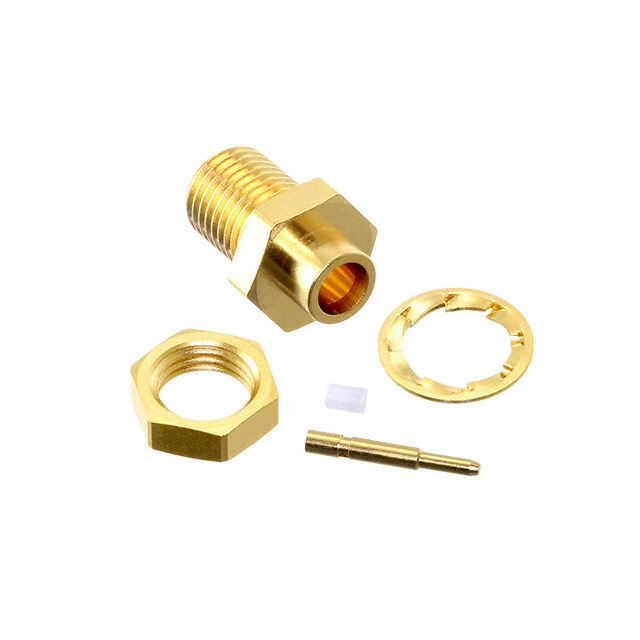

Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Mating Cycles	Center Contact Plating	Mounting Feature	Housing Color	Shield Termination	Contact Termination	Voltage Rating	Connector Type	Center Contact Material	Impedance	Features	Frequency - Max [Max]	Includes	Cable Group	Fastening Type	Body Material	Dielectric Material	Body Finish
Rosenberger 19S601-271L5	155 °C	-65 ░C	1	500	Gold	Bulkhead - Front Side Nut	Gold	Solder	Solder	335 V	Male Pin Plug	Brass	50 Ohms	Limited Detent	26.5 GHz	1 Connector 1 Contact 1 Lockwasher 1 Nut	RG-405 (.085" Semi Rigid)	Snap-On	Brass	Polytetrafluoroethylene (PTFE)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Male Pin 50 Ohms Panel Mount Solder
