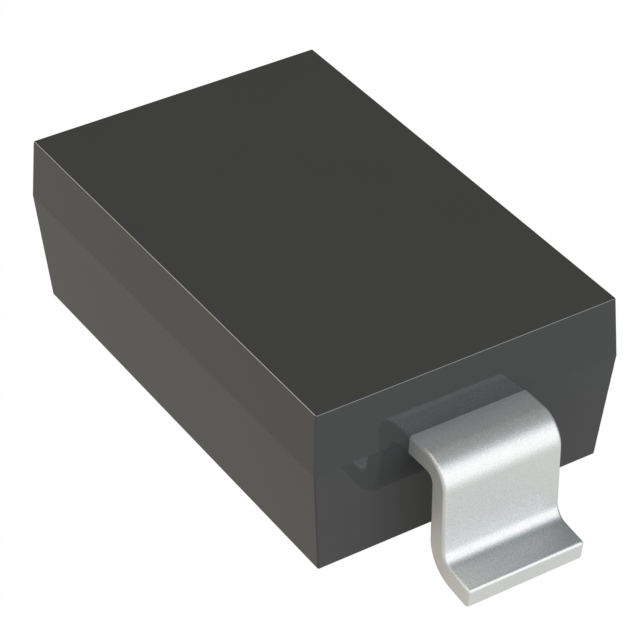

XBS104P11R-G

Active

Torex Semiconductor Ltd

DIODE SCHOTTKY 40V 1A SOD123P

Search across all available documentation for this part.

Active

Torex Semiconductor Ltd

DIODE SCHOTTKY 40V 1A SOD123P

Technical Specifications

Parameters and characteristics for this part

Specification	XBS104P11R-G

Capacitance @ Vr, F	230 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOD-123
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123P
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If [Max]	560 mV

Part	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Speed	Capacitance @ Vr, F	Operating Temperature - Junction
Torex Semiconductor Ltd XBS104P11R-G	Surface Mount	560 mV	40 V	Schottky	500 µA	1 A	SOD-123P	SOD-123	200 mA 500 ns	230 pF	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 1A Surface Mount SOD-123P
