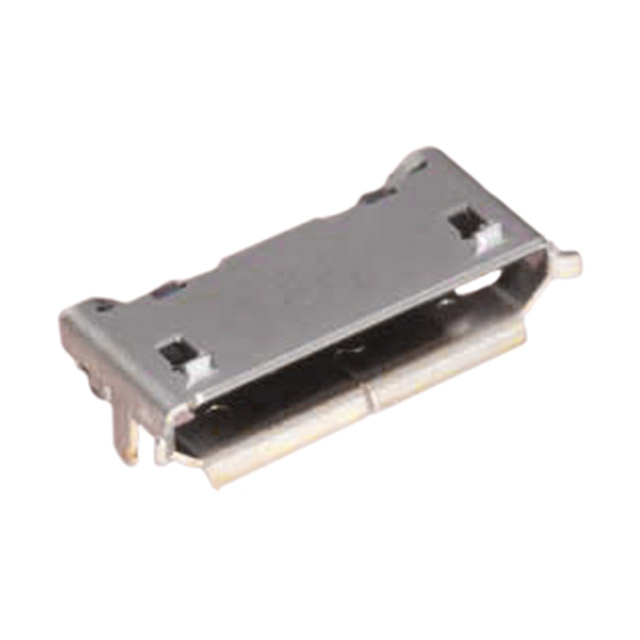

GX60-18P(30)

LTB

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 18POS 0.4MM

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 18POS 0.4MM

Technical Specifications

Parameters and characteristics for this part

Specification	GX60-18P(30)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Shielded, Board Lock
Insulation Color	Black
Insulation Height	3.5 mm
Insulation Height	0.138 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.016 in
Pitch - Mating	0.4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VDC

Part	Features	Contact Material	Contact Finish - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Contact Type	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Insulation Color	Number of Positions Loaded	Shrouding	Style	Fastening Type	Connector Type	Material Flammability Rating	Voltage Rating	Number of Positions
Hirose Electric USA, Inc. GX60-18P(30)	Board Lock Shielded	Copper Alloy	Gold	Liquid Crystal Polymer (LCP)	-30 ░C	80 C	Solder	1	Male Pin	Surface Mount Right Angle	0.016 in	0.4 mm	3.5 mm	0.138 in	Black	All	Shrouded - 4 Wall	Board to Cable/Wire	Push-Pull	Receptacle	UL94 V-0	30 VDC	18
