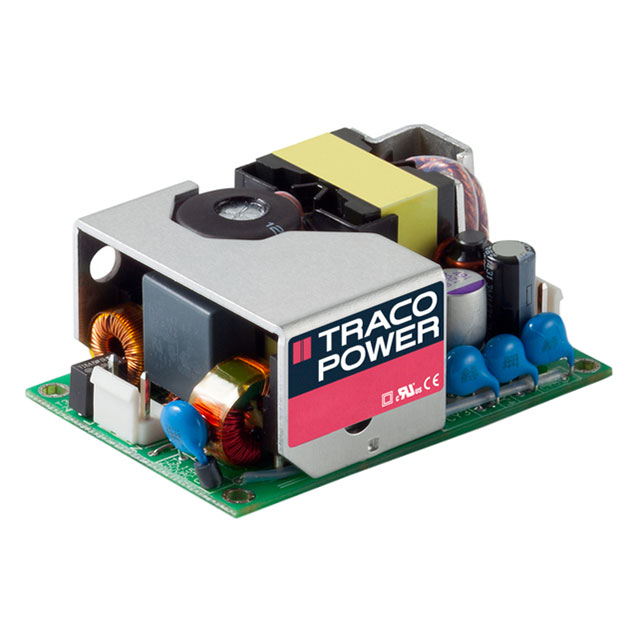

TPI 100-148A-J
ActiveTraco Power
AC/DC CONVERTER 48V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPI 100-148A-J
ActiveTraco Power
AC/DC CONVERTER 48V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPI 100-148A-J |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 2.09 A |
| Efficiency | 91 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 3 " |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 29.5 mm |
| Size / Dimension [z] | 1.16 " |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 85.69 | |
| 10 | $ 78.68 | |||
| 25 | $ 76.05 | |||
| 50 | $ 74.12 | |||
| 100 | $ 72.24 | |||
| 250 | $ 63.42 | |||
Description
General part information
TPI 100 Series
Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 370 VDC Input
