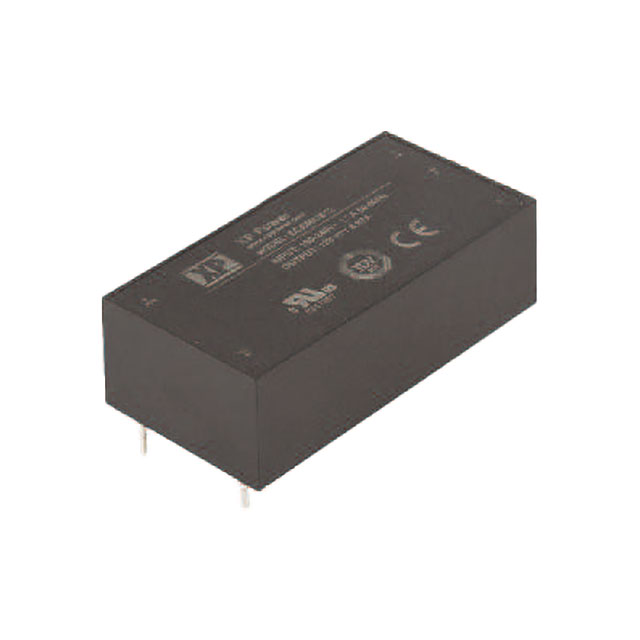

ECE80US48-S

Active

XP POWER

AC/DC CONVERTER 48V 80W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 48V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	ECE80US48-S

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	1.67 A
Efficiency	87 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	80 W
Size / Dimension [x]	4.45 in
Size / Dimension [x]	113 mm
Size / Dimension [y]	47.5 mm
Size / Dimension [y]	1.87 "
Size / Dimension [z]	28.5 mm
Size / Dimension [z]	1.12 in
Standard Number	62368-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Accessory Type	For Use With/Related Products	Features	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Current - Output (Max) [Max]	Voltage - Isolation	Efficiency	Standard Number	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Input Type	Number of Outputs	Type	Mounting Type	Current - Output 1
XP POWER ECE80 DIN CLIP	DIN Rail Clip	ECE80 DIN Rail
XP POWER ECE80US15-SD			Universal Input	80 W	85 VAC	264 VAC	ITE (Commercial)	5.33 A	3000 V	88 %	62368-1	15 V	28.5 mm	4.45 in	113 mm	47.5 mm	1.87 "	1.12 in	CB TUV UL	AC	1
XP POWER ECE80US12-SD			Universal Input	80 W	85 VAC	264 VAC	ITE (Commercial)	6.67 A	3000 V	88 %	62368-1	12 V	28.5 mm	4.45 in	113 mm	47.5 mm	1.87 "	1.12 in	CB TUV UL	AC	1
XP POWER ECE80US24-SD			Universal Input	80 W	85 VAC	264 VAC	ITE (Commercial)	3.33 A	3000 V	87 %	62368-1	24 V	28.5 mm	4.45 in	113 mm	47.5 mm	1.87 "	1.12 in	CB TUV UL	AC	1
XP POWER ECE80US24-S			DC Input Capable Universal Input	80 W			ITE (Commercial)		3000 V	87 %	62368-1	24 V	28.5 mm	4.45 in	113 mm	47.5 mm	1.87 "	1.12 in	CE		1	Enclosed	Chassis Mount	3.33 A
XP POWER ECE80US48-S			DC Input Capable Universal Input	80 W			ITE (Commercial)		3000 V	87 %	62368-1	48 V	28.5 mm	4.45 in	113 mm	47.5 mm	1.87 "	1.12 in	CE		1	Enclosed	Chassis Mount	1.67 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
