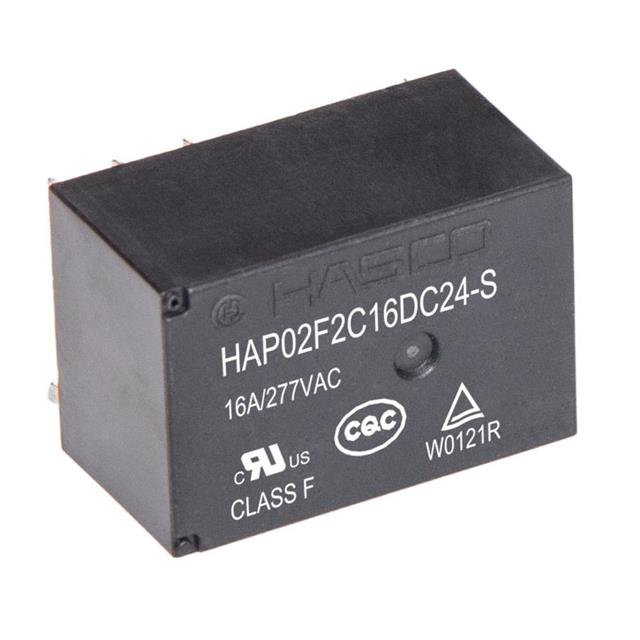

HAP02F2C16DC24S

Active

Hasco Relays

RELAY DPDT 16A 24V

Search across all available documentation for this part.

Active

Hasco Relays

RELAY DPDT 16A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Voltage	Contact Rating (Current)	Contact Form	Termination Style	Seal Rating	Coil Type	Must Release Voltage	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Operate Time	Coil Insulation	Release Time	Must Operate Voltage	Contact Material	Mounting Type
Hasco Relays HAP02F2C16DC24S	24 VDC	16 A	DPDT (2 Form C)	PC Pin	Sealed - Fully	Non Latching	2.4 VDC	33.3 mA	-40 °C	105 ░C	277 VAC	10 ms	Class F	5 ms	18 VDC	Silver Alloy	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	26	$ 4.78

General part information

Relay DPDT (2 Form C) 24VDC Coil Through Hole
