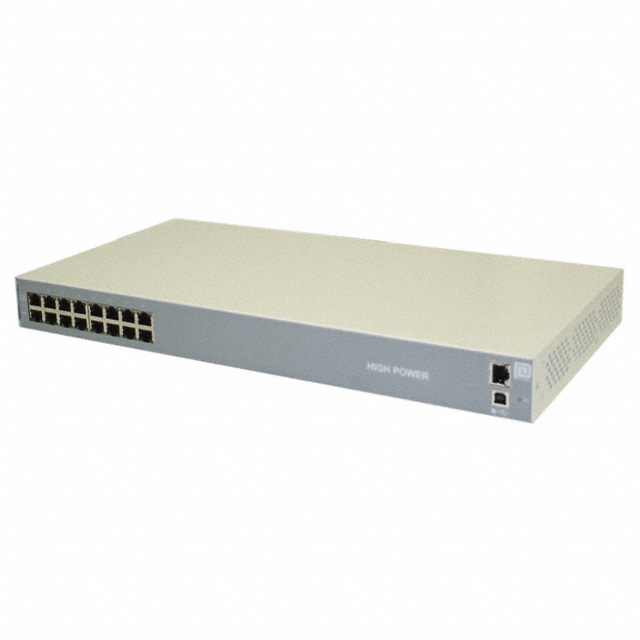

POE576U-8AT-N

Obsolete

Phihong USA

POE INJECTOR 30W RACK

Search across all available documentation for this part.

Obsolete

Phihong USA

POE INJECTOR 30W RACK

Technical Specifications

Parameters and characteristics for this part

Specification	POE576U-8AT-N

Approval Agency	cULus, CE
Compliance	IEEE802.3at
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps
Efficiency	75 %
Features	OTP, SCP, OVP, OCP
Input Connector	IEC 320-C14
Mounting Type	Rack Mount
Note	AC Power Cord Sold Separately
Number of Ports	8
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	30 W
Size / Dimension [x]	437 mm
Size / Dimension [x]	17.2 "
Size / Dimension [y]	230 mm
Size / Dimension [y]	9.06 in
Size / Dimension [z]	1.73 "
Size / Dimension [z]	44 mm
Type	Midspan Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Weight	8.5 lbs
Weight	3.9 kg

Part	Type	Mounting Type	Approval Agency	Operating Temperature [Max]	Input Connector	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Note	Compliance	Weight	Weight	Number of Ports [custom]	Data Rate	Power (Watts) - Per Port	Features	Output Connector	Number of Ports
Phihong USA POE576U-16AT-N	Midspan Injector	Rack Mount	CE cULus	40 °C	IEC 320-C14	75 %	1.73 "	44 mm	230 mm	9.06 in	437 mm	17.2 "	90 VAC	264 VAC	AC Power Cord Sold Separately	IEEE802.3at	8.5 lbs	3.9 kg	16	10 Mbps 100 Mbps 1000 Mbps	30 W	OCP OTP OVP SCP	RJ45 (Data Power)
Phihong USA POE576U-8AT	Midspan Injector	Rack Mount	CE cULus	40 °C	IEC 320-C14	75 %	1.73 "	44 mm	230 mm	9.06 in	437 mm	17.2 "	90 VAC	264 VAC	AC Power Cord Sold Separately	IEEE802.3at	8.5 lbs	3.9 kg		10 Mbps 100 Mbps 1000 Mbps	30 W	OCP OTP OVP SCP	RJ45 (Data Power)	8
Phihong USA POE576U-8AT-N	Midspan Injector	Rack Mount	CE cULus	40 °C	IEC 320-C14	75 %	1.73 "	44 mm	230 mm	9.06 in	437 mm	17.2 "	90 VAC	264 VAC	AC Power Cord Sold Separately	IEEE802.3at	8.5 lbs	3.9 kg		10 Mbps 100 Mbps 1000 Mbps	30 W	OCP OTP OVP SCP	RJ45 (Data Power)	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Over Ethernet (POE) 8 Port Midspan Injector 10/100/1000 Mbps Data Rate
