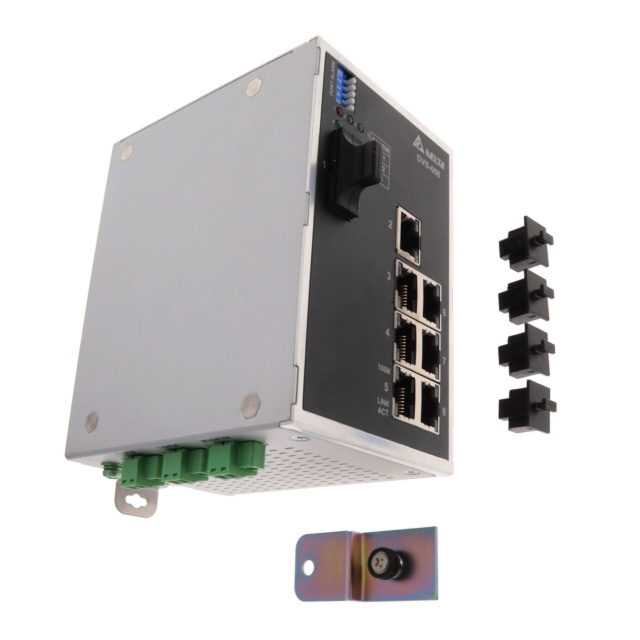

DVS-008W01-MC01
ObsoleteDelta Electronics/Industrial Automation
WIDE TEMP UNMANAGED ETHERNET SWI
Deep-Dive with AI
Search across all available documentation for this part.
DVS-008W01-MC01
ObsoleteDelta Electronics/Industrial Automation
WIDE TEMP UNMANAGED ETHERNET SWI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DVS-008W01-MC01 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, SC |
| Copper Ports | 7 |
| Copper Type | 10/100 |
| Fiber Ports | 1 |
| Fiber Type | 100BASE-FX (Multimode) |
| Ingress Protection | IP40 |
| Mounting Type | DIN Rail, Wall Mount |
| Number of Ports | 8 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Type | Switch - Unmanaged |
| Voltage - Input [Max] | 48 V |
| Voltage - Input [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 344.22 | |
Description
General part information
DVS-008 Series
Network Switch - Unmanaged 8 Ports IP40
Documents
Technical documentation and resources
No documents available
