19400220470

Active

HARTING Technology Group

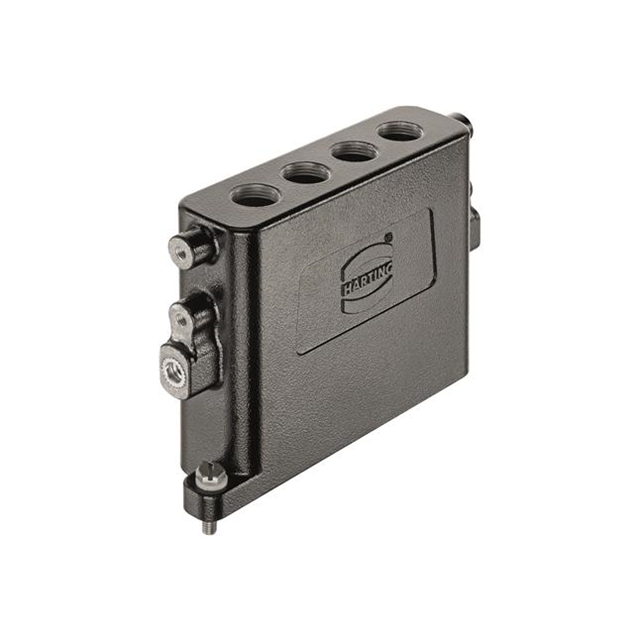

22 HPR SLIM HOOD, TOGGLE LOCKING

Search across all available documentation for this part.

Active

HARTING Technology Group

22 HPR SLIM HOOD, TOGGLE LOCKING

Technical Specifications

Parameters and characteristics for this part

Specification	19400220470

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	22HPR
Size / Dimension [x]	181 mm
Size / Dimension [x]	7.126 "
Size / Dimension [y]	41.5 mm
Size / Dimension [y]	1.634 in
Size / Dimension [z]	123 mm
Size / Dimension [z]	4.843 in
Style	Top Entry
Thread Size	M20

Part	Housing Color	Housing Material	Connector Type	Thread Size	Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Housing Finish	Lock Location	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style
HARTING Technology Group 19400220970	Black	Aluminum Die Cast	Hood	M20	22HPR	181 mm	4.508 "	7.126 "	41.5 mm	114.5 mm	1.634 in	Powder Coated	Screw Locks on Hood	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	125 °C	-40 °C	Top Entry
HARTING Technology Group 19400220470	Black	Aluminum Die Cast	Hood	M20	22HPR	181 mm	4.843 in	7.126 "	41.5 mm	123 mm	1.634 in	Powder Coated	Screw Locks on Hood	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	125 °C	-40 °C	Top Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 539.60

General part information

Hood Connector Top Entry M20 22HPR IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof

Technical documentation and resources
