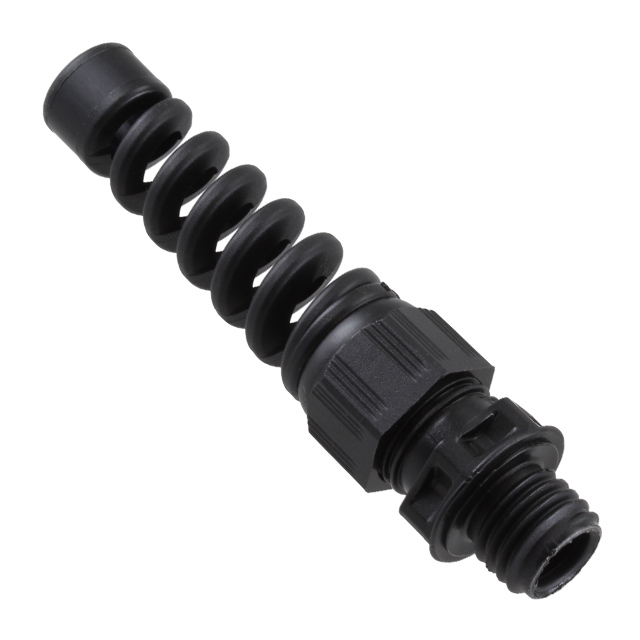

1415177

Active

Phoenix Contact

CABLE GLAND 3-7MM M12 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-7MM M12 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1415177

Color	Black
Includes	Strain Relief, O-Ring, Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	M12
Type	Cable Gland

Part	Thread Size	Includes	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Color	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 1415177	M12	O-Ring Seal Strain Relief	3 mm	0.118 in	Polyamide (PA) Nylon	7 mm	0.276 in	0.354 in	9 mm	Black	IP68/IP69 - Dust Tight Water Resistant Waterproof	Cable Gland	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M12 Black
