ACSA56-51SURKWA

Active

Kingbright

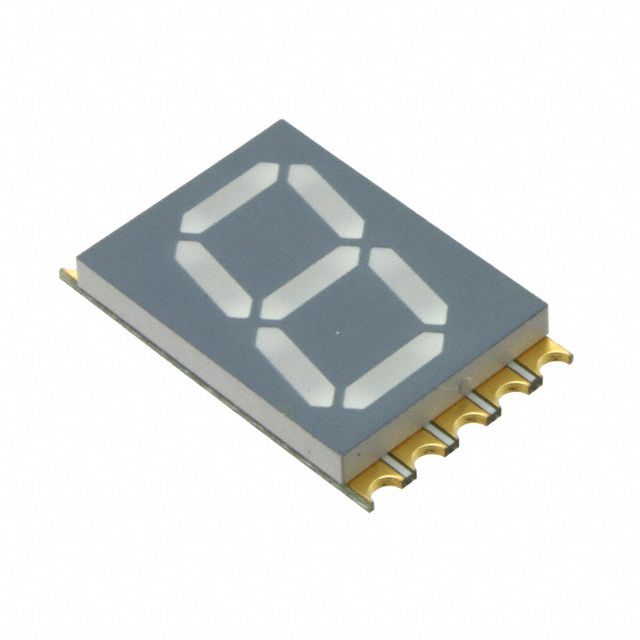

DISPLAY 7SEG 0.56" SGL RED 12SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ACSA56-51SURKWA

Active

Kingbright

DISPLAY 7SEG 0.56" SGL RED 12SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACSA56-51SURKWA

Color	Red
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	36 mcd
Number of Characters [custom]	1
Package / Case	12-SMD, No Lead
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.669 "
Size / Dimension [x]	17 mm
Size / Dimension [y]	12.5 mm
Size / Dimension [y]	0.492 "
Size / Dimension [z]	0.094 "
Size / Dimension [z]	2.4 mm
Voltage - Forward (Vf) (Typ)	1.95 V
Wavelength - Peak	650 nm

ACSA56 Series

Part	Power Dissipation (Max) [Max]	Common Pin	Number of Characters [custom]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Display Type	Millicandela Rating	Color	Size / Dimension [y]	Size / Dimension [z]	Digit/Alpha Size
Kingbright ACSA56-41SURKWA-F01	75 mw	Common Anode	1	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	1.95 V	650 nm	10-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment	44 mcd	Red
Kingbright ACSA56-41SYKWA-F01	75 mw	Common Anode	1	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	2 V	590 nm	10-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment	76 mcd	Yellow
Kingbright ACSA56-41SEKWA-F01	75 mw	Common Anode	1	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	2.1 V	610 nm	10-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment	78 mcd
Kingbright ACSA56-41QBWA/D-F01	120 mW	Common Anode	1	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	3.3 V	468 nm	10-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment	15 mcd	Blue
Kingbright ACSA56-41ZGWA-F01	102.5 mW	Common Anode	1	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	3.3 V	515 nm	10-SMD No Lead	0.56 in	14.22 mm	10 mA 20 mA	7-Segment	160 mcd	Green
Kingbright ACSA56-51CGKWA	75 mw	Common Anode	1	0.094 "	0.492 "	2.4 mm	0.669 "	17 mm	12.5 mm	2.1 V		10-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment		Green
Kingbright ACSA56-51PBWA/A	120 mW	Common Anode	1	0.094 "	0.492 "	2.4 mm	0.669 "	17 mm	12.5 mm	3.2 V	468 nm	10-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment	4 mcd	Blue
Kingbright ACSA56-41PBWA/A-F01	120 mW	Common Anode	1	0.116 in	0.488 in		0.748 in	19 mm		3.2 V	468 nm	10-SMD No Lead	14.2 mm		20 mA	7-Segment	9 mcd	Blue	12.4 mm	2.95 mm	0.56 in
Kingbright ACSA56-41CGKWA-F01	75 mw	Common Anode	1	0.669 in	0.488 in	17 mm	0.148 "	3.75 mm	12.4 mm	2.1 V		10-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment	25 mcd	Green
Kingbright ACSA56-51SURKWA	75 mw	Common Anode	1	0.094 "	0.492 "	2.4 mm	0.669 "	17 mm	12.5 mm	1.95 V	650 nm	12-SMD No Lead	0.56 in	14.22 mm	20 mA	7-Segment	36 mcd	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.43
		10	$ 2.29
		100	$ 1.76
	Digi-Reel®	1	$ 3.43
		10	$ 2.29
		100	$ 1.76
	Tape & Reel (TR)	400	$ 1.76
		800	$ 1.44
		1200	$ 1.37
		2000	$ 1.29

Description

General part information

ACSA56 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.669" H x 0.492" W x 0.094" D (17.00mm x 12.50mm x 2.40mm) 12-SMD, No Lead
