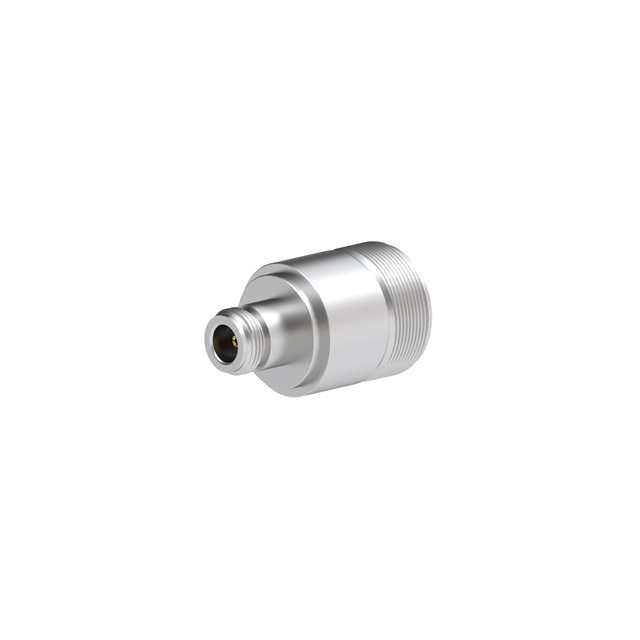

R191741000

Active

Radiall USA, Inc.

N FEMALE - LC FEMALE STRAIGHT AD

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N FEMALE - LC FEMALE STRAIGHT AD

Technical Specifications

Parameters and characteristics for this part

Specification	R191741000

Adapter Series	N to LC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	LC Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	500 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Frequency - Max [Max]	Adapter Series	Dielectric Material	Body Finish	Body Material	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Style	Impedance	Mounting Feature	Center Contact Plating	Convert From (Adapter End)	Conversion Type	Center Gender	Center Contact Material	Mounting Type
Radiall USA, Inc. R191742000	500 MHz	N to LC	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Female Socket LC Jack	155 °C	-55 °C	Jack to Jack	Straight	50 Ohms	Flange	Gold	Female Socket N Jack	Between Series	Female to Female	Bronze
Radiall USA, Inc. R191741000	500 MHz	N to LC	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Female Socket LC Jack	155 °C	-55 °C	Jack to Jack	Straight	50 Ohms		Gold	Female Socket N Jack	Between Series	Female to Female	Bronze	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 1236.16

General part information

Adapter Coaxial Connector N Jack, Female Socket To LC Jack, Female Socket 50 Ohms
